2213867 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

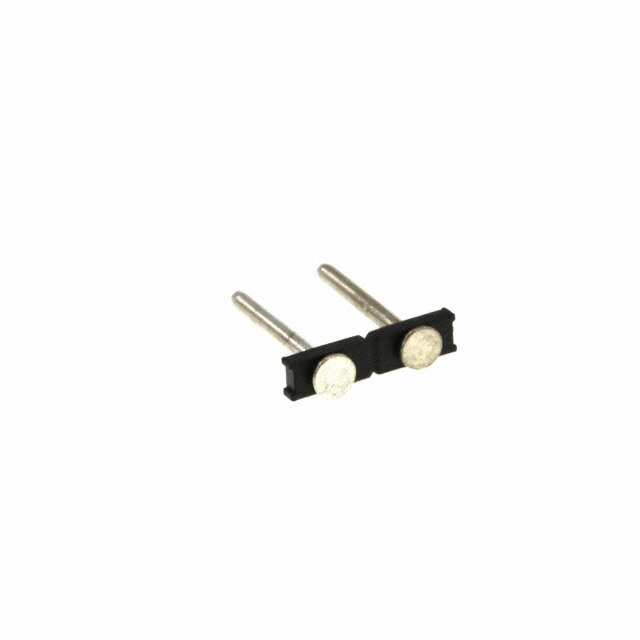

5.00MM SCREW TB PIN STRIP, 2 POS
| Part | Current - UL | Termination Style | Voltage - UL | Type | Mounting Type | Number of Positions | Housing Material | Contact Mating Finish | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Header Orientation | Contact Material | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 A | Solder | 300 V | Header Male Pins | Surface Mount | 2 | Glass Filled Nylon 4/6 Polyamide (PA46) | Tin | 5 mm | 0.197 in | 0.039 " | 1 mm | 1 | -40 °C | 105 ░C | UL94 V-0 | Vertical | Brass | 2 |
