SHSM8L Series

Catalog

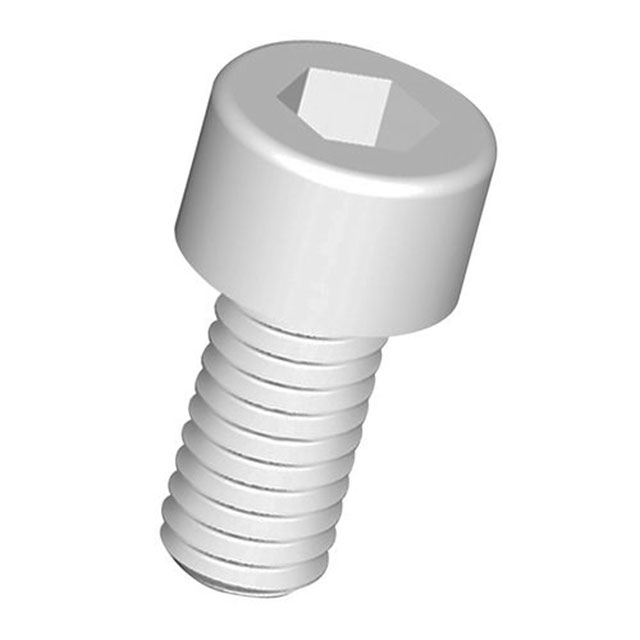

BOLT HEX HEAD HEX SOCKET M8X1.25

Part	Length - Overall [x]	Length - Overall [x]	Head Height	Head Height	Type	Thread Size	Drive Type	Screw Head Type	Length - Below Head [x]	Length - Below Head [x]	Material	Head Diameter	Head Diameter [diameter]
Essentra Components SHSM8L10A	33 mm	1.299 in	0.315 "	8 mm	Bolt	M8x1.25	Hex Socket	Hex Head	10 mm	0.394 in	Nylon	13 mm	0.512 in
Essentra Components SHSM8L25A			0.315 "	8 mm	Bolt	M8x1.25	Hex Socket	Hex Head	25 mm	0.984 in	Nylon	13 mm	0.512 in
