20TQC Series

Manufacturer: Panasonic Electronic Components

Catalog

POSCAP,TQC SERIES ROHS COMPLIANT: YES

Part	Tolerance	Capacitance	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Features	Package / Case	Package / Case	ESR (Equivalent Series Resistance)	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 20TQC22MYFB	20 % 20 %	22 µF	2000 Hrs 2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	3.5 mm	0.11 "	2.8 mm	0.138 in	B2	General Purpose	3528 Metric	1411	80 mOhm	Molded
Panasonic Electronic Components 20TQC8R2M	20 %	8.2 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	3.5 mm	0.11 "	2.8 mm	0.138 in	B2	General Purpose	3528 Metric	1411	100 mOhm	Molded
Panasonic Electronic Components 20TQC33MYFD	20 %	33 ÁF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	7.3 mm	0.169 "	4.3 mm	0.287 "	D2	General Purpose		2917 (7343 Metric)	80 mOhm	Molded
Panasonic Electronic Components 20TQC22MQD	20 %	22 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	7.3 mm	0.169 "	4.3 mm	0.287 "	D2			2917 (7343 Metric)	90 mOhm	Molded
Panasonic Electronic Components 20TQC22MYFD	20 %	22 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	7.3 mm	0.169 "	4.3 mm	0.287 "	D2	General Purpose		2917 (7343 Metric)	80 mOhm	Molded
Panasonic Electronic Components 20TQC47MYFT	20 %	47 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V			7.3 mm	0.169 "	4.3 mm	0.287 "	D15	General Purpose		2917 (7343 Metric)	55 mOhm	Molded	0.059 "	1.5 mm
Panasonic Electronic Components 20TQC100MD2	20 %	100 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V	0.079 in	2 mm	7.3 mm	0.169 "	4.3 mm	0.287 "	D2	General Purpose		2917 (7343 Metric)	100 mOhm	Molded

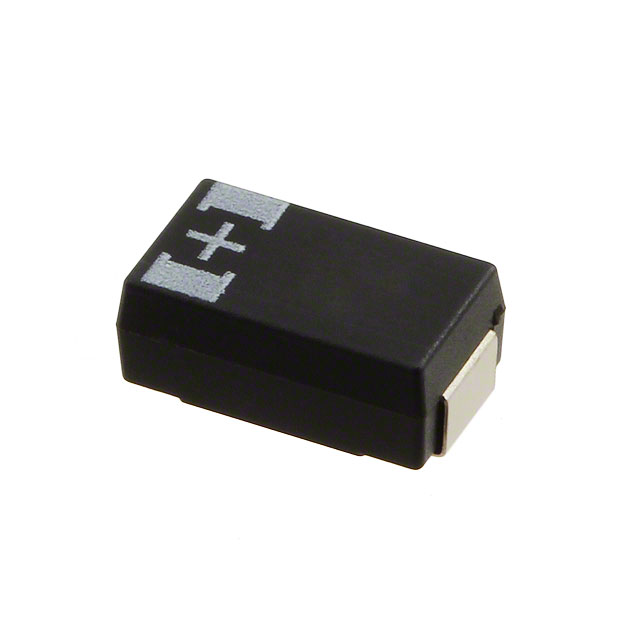

Panasonic Electronic Components 20TQC100MYF	20 %	100 µF	2000 Hrs	-55 C	105 ░C	Surface Mount	20 V			7.3 mm	0.169 "	4.3 mm	0.287 "	D3L	General Purpose		2917 (7343 Metric)	55 mOhm	Molded			2.9 mm	0.114 "
