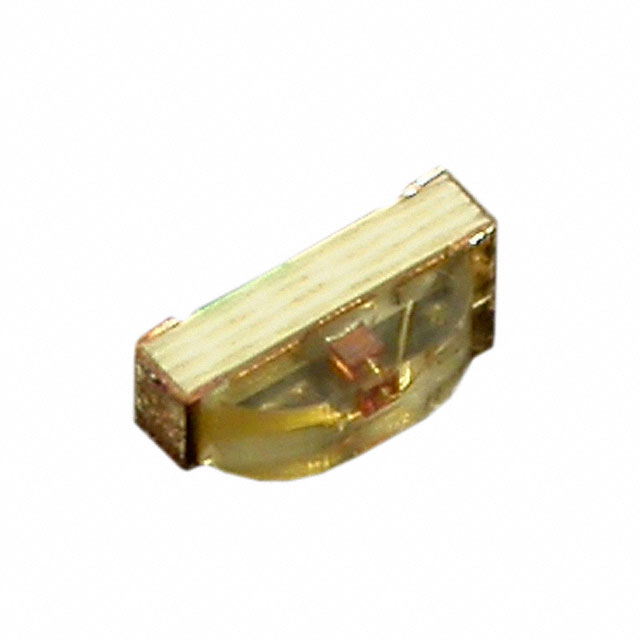

SML-LXR2106 Series

Catalog

LED YELLOW CLEAR SMD R/A

Part	Color	Supplier Device Package	Configuration	Mounting Type	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Current - Test	Package / Case	Wavelength - Peak	Height (Max) [z]	Lens Style	Viewing Angle	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]
Lumex Opto/Components Inc. SML-LXR2106SYC-TR	Yellow	SMD	Standard	Right Angle Surface Mount	Clear	1 mm	2.1 mm	Colorless	20 mA	2-SMD No Lead	590 nm	0.6 mm	Rectangle with Domed Top	120 °	150 mcd	2 V	0.6 mm	1.7 mm
Lumex Opto/Components Inc. SML-LXR2106USBC-TR	Blue	SMD	Standard	Right Angle Surface Mount	Clear	1 mm	2.1 mm	Colorless	20 mA	2-SMD No Lead	460 nm	0.6 mm	Rectangle with Domed Top	120 °	80 mcd	3.3 V	0.6 mm	1.7 mm
Lumex Opto/Components Inc. SML-LXR2106SUGC-TR	Green	SMD	Standard	Right Angle Surface Mount	Clear	1 mm	2.1 mm	Colorless	20 mA	2-SMD No Lead		0.6 mm	Rectangle with Domed Top	120 °	50 mcd	2.1 V	0.6 mm	1.7 mm
Lumex Opto/Components Inc. SML-LXR2106SIC-TR	Red	SMD	Standard	Right Angle Surface Mount	Clear	1 mm	2.1 mm	Colorless	20 mA	2-SMD No Lead	645 nm	0.6 mm	Rectangle with Domed Top	120 °	220 mcd	1.95 V	0.6 mm	1.7 mm
