502250 Series

Manufacturer: Molex

Catalog

CONN FPC 35POS 0.3MM R/A

Part	Current Rating (Amps)	Housing Color	Housing Material	Actuator Material	Mating Cycles	Pitch [x]	Pitch [x]	Voltage Rating	Mounting Type	Number of Positions	Material Flammability Rating	Flat Flex Type	FFC, FCB Thickness	Actuator Color	Connector/Contact Type	Termination	Contact Finish	Contact Material	Height Above Board	Height Above Board	Operating Temperature [Min]	Operating Temperature [Max]	Locking Feature	Cable End Type	Features

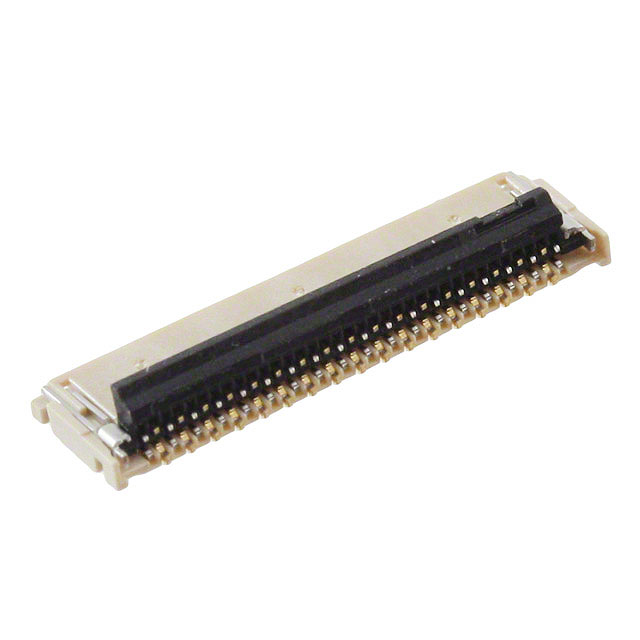

Molex 5022503591	0.2 A	Natural	Liquid Crystal Polymer (LCP) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	10	0.012 in	0.3 mm	50 V	Surface Mount Right Angle	35	UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "	-25 °C	85 °C	Backlock Flip Lock	Notched or Tabbed

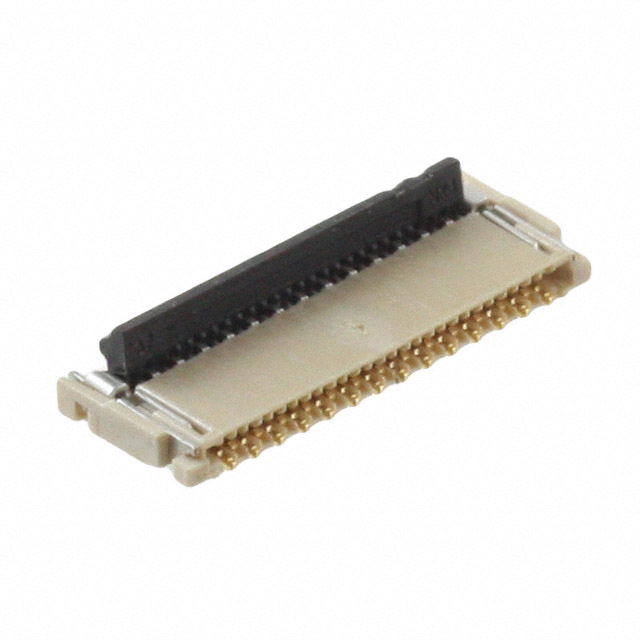

Molex 5022502791	0.2 A	Natural	Liquid Crystal Polymer (LCP) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	10	0.012 in	0.3 mm	50 V	Surface Mount Right Angle	27	UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "	-25 °C	85 °C	Backlock Flip Lock	Notched or Tabbed
Molex 5022502391	0.2 A	Natural	Liquid Crystal Polymer (LCP) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	10	0.012 in	0.3 mm	50 V	Surface Mount Right Angle	23	UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "	-25 °C	85 °C	Backlock Flip Lock	Notched or Tabbed
Molex 5022508641
Molex 5022508013

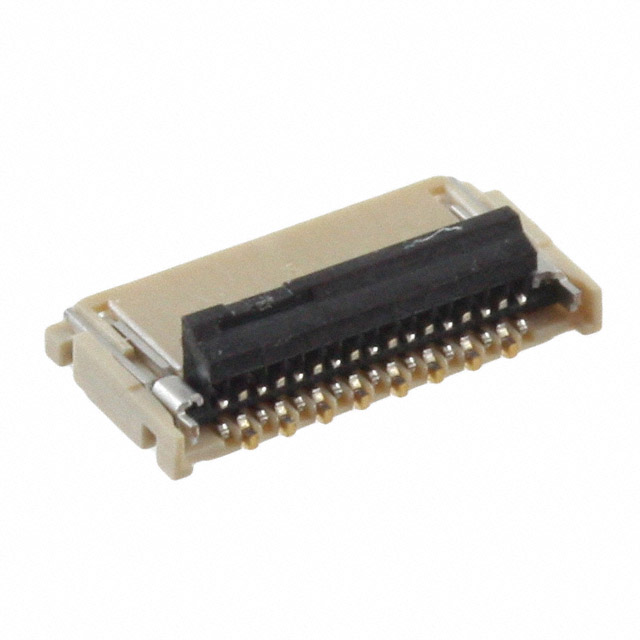

Molex 5022501791	0.2 A	Natural	Liquid Crystal Polymer (LCP) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	10	0.012 in	0.3 mm	50 V	Surface Mount Right Angle		UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "	-25 °C	85 °C	Backlock Flip Lock	Notched or Tabbed
Molex 5022508037		Black	Liquid Crystal Polymer (LCP) Glass Filled	Glass Filled Nylon Polyamide (PA)		0.012 in	0.3 mm		Surface Mount Right Angle	37	UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "			Backlock Flip Lock	Notched	Solder Retention
Molex 5022503991	0.2 A	Natural	Liquid Crystal Polymer (LCP) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	10	0.012 in	0.3 mm	50 V	Surface Mount Right Angle	39	UL94 V-0	FPC	0.2 mm	Black	Contacts Top and Bottom	Solder	Gold	Copper Alloy	0.88 mm	0.035 "	-25 °C	85 °C	Backlock Flip Lock	Notched or Tabbed
