302-R64 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

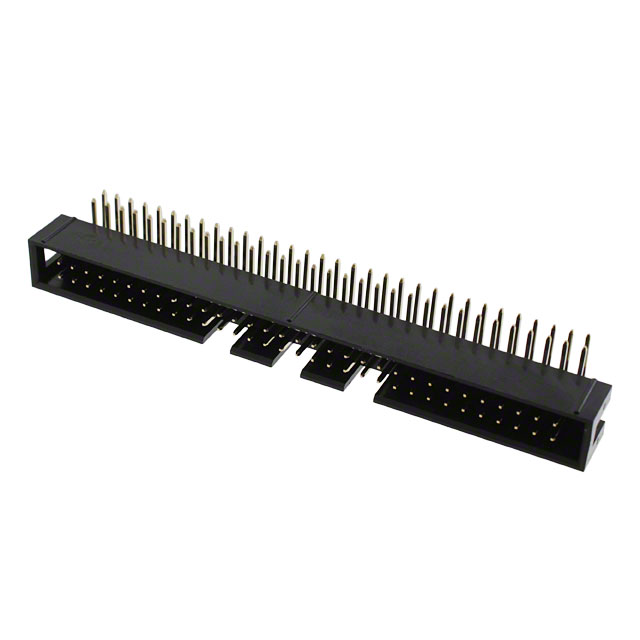

CONN HEADER R/A 64POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Contact Material | Fastening Type | Contact Finish Thickness - Mating | Termination | Shrouding | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Current Rating (Amps) | Contact Finish - Mating | Style | Connector Type | Number of Rows [custom] | Mounting Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | -40 C | 105 ░C | Keying Slot | 250 V | 0.1 " | 2.54 mm | 64 | All | Black | UL94 V-0 | Brass | Push-Pull | Flash | Solder | Shrouded - 4 Wall | Gold | 0.1 in | 2.54 mm | Square | Polyester Glass Filled | 0.122 in | 3.1 mm | Male Pin | 3 A | Gold | Board to Cable/Wire | Header | 2 | Right Angle Through Hole | 0.358 " | 9.1 mm |
