SN5 Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKE, 25UH, 1A

Part	Mounting Type	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	Filter Type	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [Max] [z]
KEMET SN5-300JB	Through Hole	25 µH	0.736 in	18.7 mm	Power Line	2	1 A	80 mOhm	Vertical 4 PC Pin	105 ░C	-25 °C

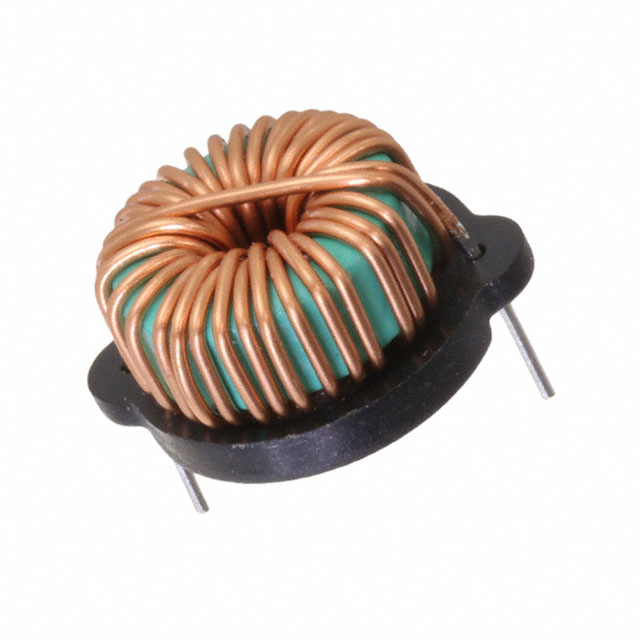

KEMET SN5-30P2	Through Hole	25 µH		9 mm	Power Line	2			Horizontal 2 PC Pin	105 ░C	-25 °C	0.669 in	17 mm	0.354 in
