1104-0 Series

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Tail Type	Socket Depth [z]	Socket Depth [z]	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish Thickness	Contact Finish Thickness

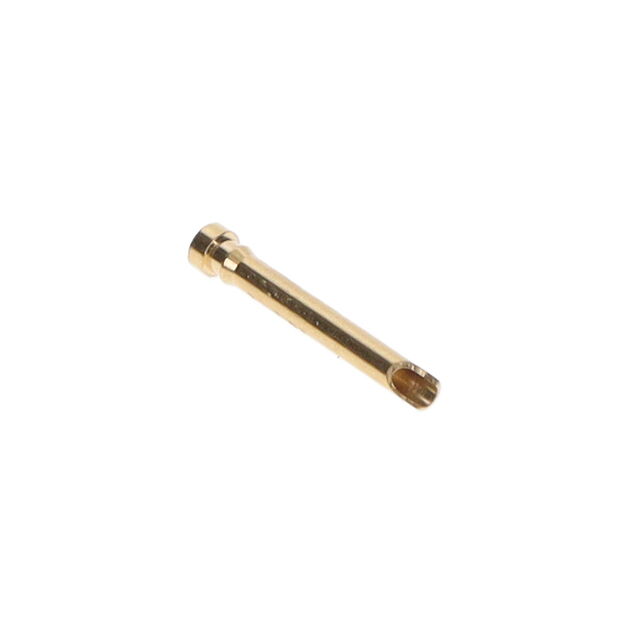

Mill-Max Manufacturing Corp. 1104-0-18-15-30-27-10-0	-55 C	125 °C	Beryllium Copper	Press-Fit	Solder Cup	3.81 mm	0.15 in	11.43 mm	0.45 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.059 in	1.5 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 1104-0-18-01-30-14-10-0	-55 C	125 °C	Beryllium Copper	Press-Fit	Solder Cup	3.81 mm	0.15 in	11.43 mm	0.45 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.059 in	1.5 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 1104-0-18-80-30-84-10-0	-55 C	125 °C	Beryllium Copper	Press-Fit	Solder Cup	3.81 mm	0.15 in	11.43 mm	0.45 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin	0.059 in	1.5 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 1104-0-18-01-30-02-10-0	-55 C	125 °C	Beryllium Copper	Press-Fit	Solder Cup	3.81 mm	0.15 in	11.43 mm	0.45 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin-Lead	0.059 in	1.5 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 1104-0-18-80-30-27-10-0	-55 C	125 °C	Beryllium Copper	Press-Fit	Solder Cup	3.81 mm	0.15 in	11.43 mm	0.45 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.059 in	1.5 mm	30 Áin	0.76 Ám
