CSL0701DT Series

Narrow oriented Orange chip LED

Catalog

Narrow oriented Orange chip LED

Part	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Current - Test	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Wavelength - Dominant	Configuration	Color	Lens Size [diameter]	Millicandela Rating	Lens Color	Lens Style

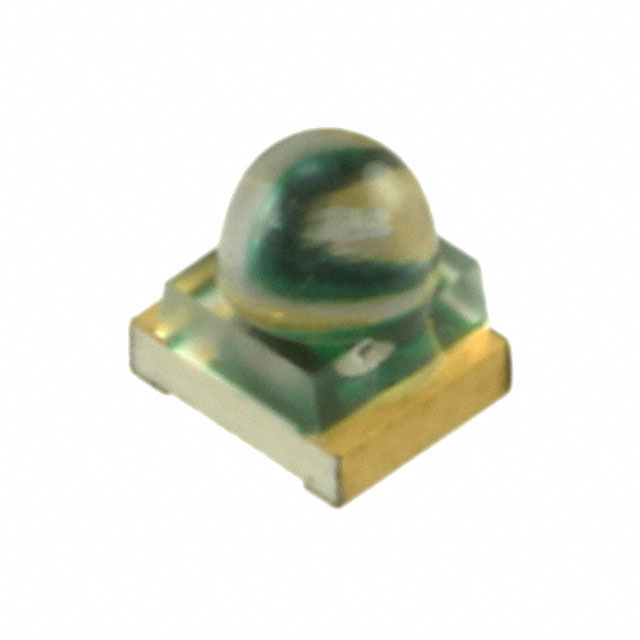

Rohm Semiconductor CSL0701UT5	2.5 mm	2.9 mm	Surface Mount	20 mA	2-SMD No Lead	Clear	2.1 V	3.3 mm	624 nm	Standard	Red	2.1 mm	18000 mcd	Colorless	Round with Domed Top

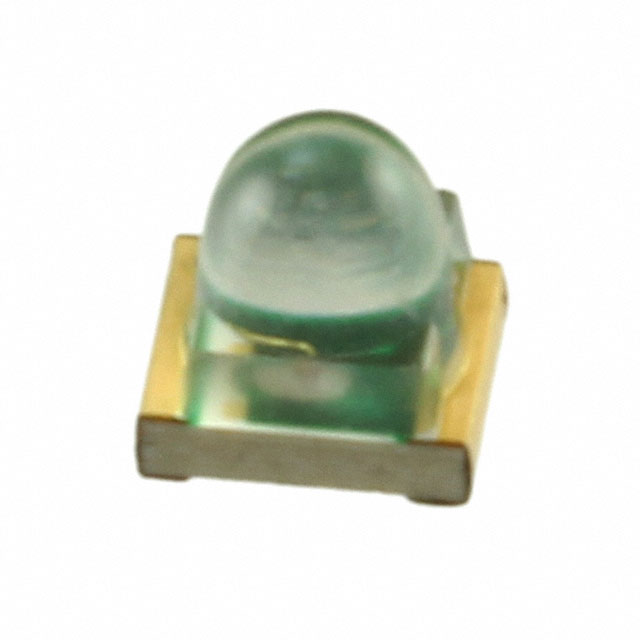

Rohm Semiconductor CSL0701DT5	2.5 mm	2.9 mm	Surface Mount	20 mA	2-SMD No Lead	Clear	2.1 V	3.3 mm	605 nm	Standard		2.1 mm	35000 mcd	Colorless	Round with Domed Top

Catalog

Narrow oriented Orange chip LED

Description

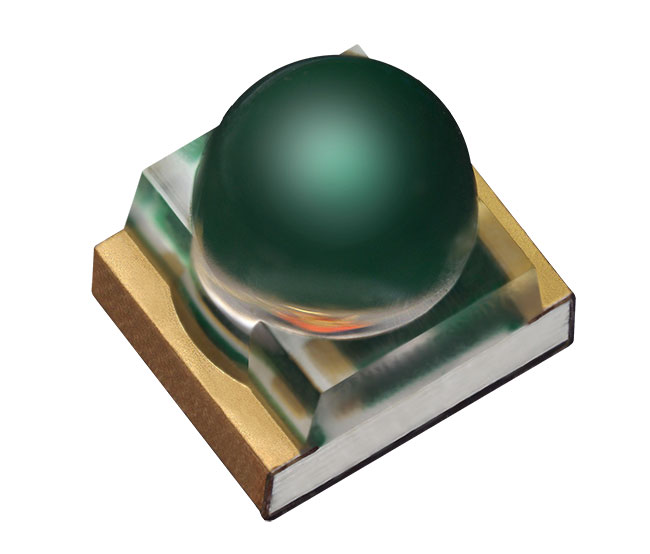

CSL07 series is a narrow pointing LED. CSL0701UT with miniaturized light-emitting elements and unique aspherical lenses are ideal for use as an auxiliary light source for auto-focus used in digital cameras and digital video cameras.
