EPM7160 Series
Manufacturer: Altera
Beta
⌘K

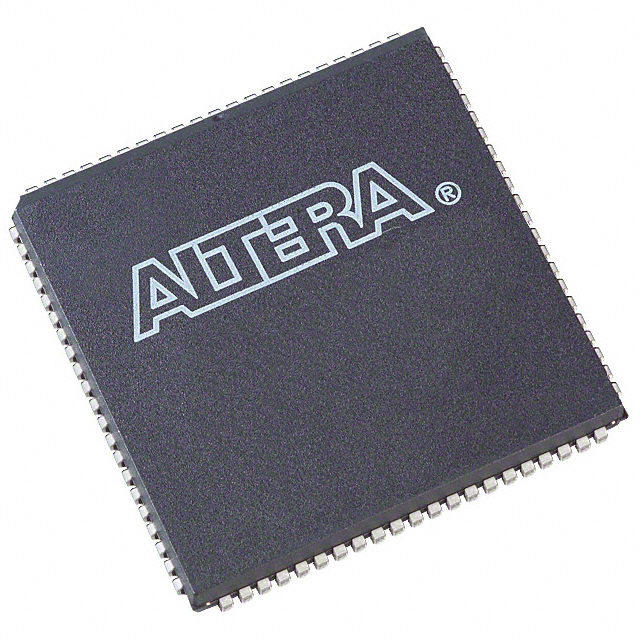

CPLD MAX® 7000 FAMILY 3.2K GATES 160 MACRO CELLS 62.5MHZ 5V 84-PIN PLCC TUBE
| Part | Mounting Type | Number of Gates | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Supply - Internal [Min] | Voltage Supply - Internal [Max] | Delay Time tpd(1) Max [Max] | Number of I/O | Package / Case | Programmable Type | Number of Logic Elements/Blocks | Supplier Device Package | Number of Macrocells |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 20 ns | 64 | 84-LCC (J-Lead) | EE PLD | 10 | 84-PLCC (29.31x29.31) | 160 |
 Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 10 ns | 64 | 84-LCC (J-Lead) | EE PLD | 10 | 84-PLCC (29.31x29.31) | 160 |
 Altera | Surface Mount | 3200 | -40 ¯C | 85 C | 4.5 V | 5.5 V | 10 ns | 84 | 100-TQFP | In System Programmable | 10 | 100-TQFP (14x14) | 160 |
 Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 20 ns | 104 | 160-BQFP | EE PLD | 10 | 160-PQFP (28x28) | 160 |
Altera | Surface Mount | 3200 | -40 ¯C | 85 C | 4.5 V | 5.5 V | 10 ns | 84 | 100-TQFP | In System Programmable | 10 | 100-TQFP (14x14) | 160 |
 Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 10 ns | 104 | 160-BQFP | In System Programmable | 10 | 160-PQFP (28x28) | 160 |
Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 7.5 ns | 84 | 100-TQFP | In System Programmable | 10 | 100-TQFP (14x14) | 160 |
Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 7.5 ns | 84 | 100-TQFP | In System Programmable | 10 | 100-TQFP (14x14) | 160 |
Altera | Surface Mount | 3200 | 0 °C | 70 °C | 4.75 V | 5.25 V | 6 ns | 104 | 160-BQFP | In System Programmable | 10 | 160-PQFP (28x28) | 160 |
Altera | Surface Mount | 3200 | -40 ¯C | 85 C | 4.5 V | 5.5 V | 20 ns | 64 | 84-LCC (J-Lead) | EE PLD | 10 | 84-PLCC (29.31x29.31) | 160 |
