XAUR14 Series
Manufacturer: SunLED
Beta
⌘K

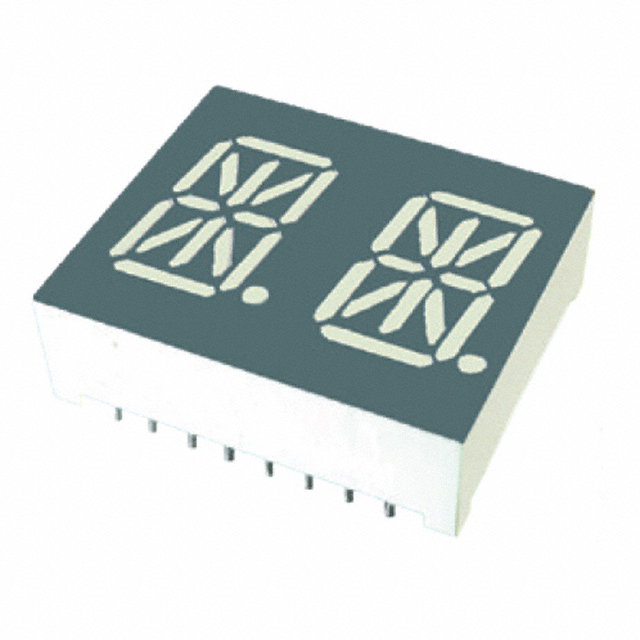

DISP 14-SEG 0.54" DBL RED 18DIP
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Display Type | Wavelength - Peak | Package / Case [x] | Package / Case [x] | Package / Case | Color | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Power Dissipation (Max) [Max] | Common Pin | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 0.992 inches | 0.835 " | 25.2 mm | 7.8 mm | 0.31 " | 21.2 mm | 1.9 V | 14-Segment Alphanumeric | 627 nm | 15.24 mm | 0.6 in | 18-DIP | Red | 2 | 0.54 " | 13.72 mm | 2 mcd | 75 mw | Common Anode | 10 mA |
 SunLED | 0.992 inches | 0.835 " | 25.2 mm | 7.8 mm | 0.31 " | 21.2 mm | 1.9 V | 14-Segment Alphanumeric | 627 nm | 15.24 mm | 0.6 in | 18-DIP | Red | 2 | 0.54 " | 13.72 mm | 2 mcd | 75 mw | Common Cathode | 10 mA |
