96574 Series

Manufacturer: Pflitsch

Catalog

CABLE FEED 20.07-24.89MM M32

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Ingress Protection	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Material	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Includes

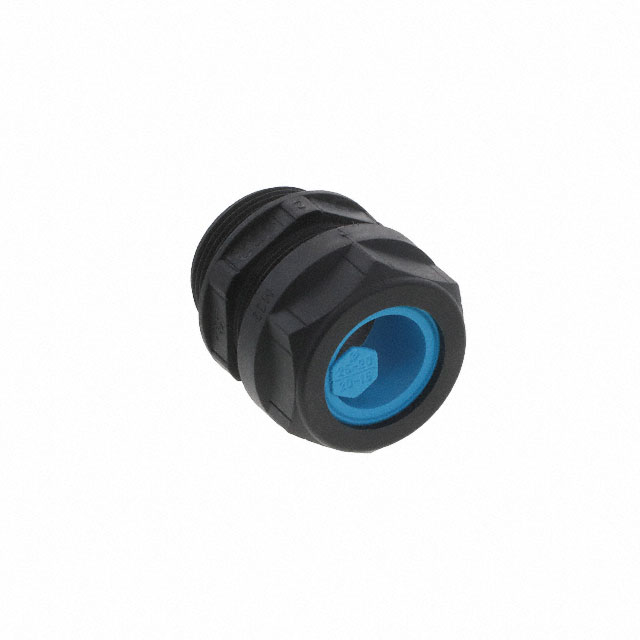

Pflitsch 96574.1	-20 ░C	100 °C	Black	0.31 "	7.87 mm	Cable Feedthrough	20.07 mm	0.79 in	M32x1.5	IP68 - Dust Tight Waterproof NEMA 4X	24.89 mm	0.98 in	Polyamide (PA) Nylon	1.26 in	32 mm
Pflitsch 96574.7/15	-60 °C	500 °C	Silver			Cable Feedthrough	15 mm	0.591 in	M32x1.5			0.984 in	Stainless Steel	1.26 in	32 mm	25 mm	Sealing Ring

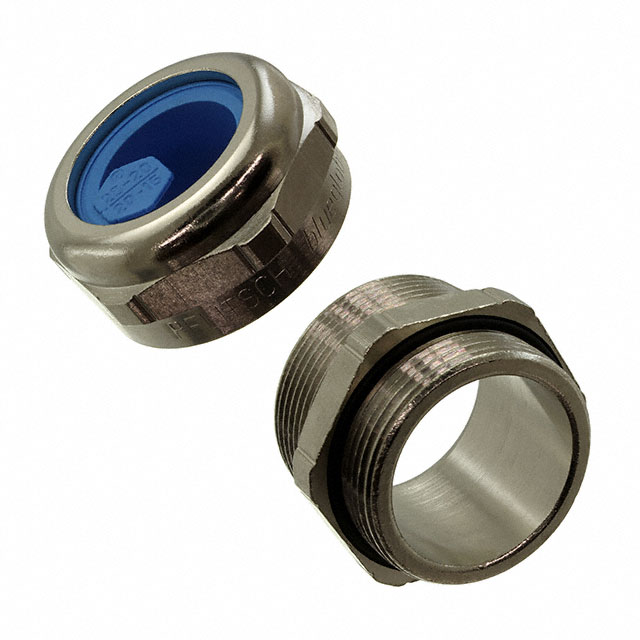

Pflitsch 96574.6	-40 C	300 °C	Silver	0.31 "	7.87 mm	Cable Feedthrough	20.07 mm	0.79 in	M32x1.5	IP68 - Dust Tight Waterproof NEMA 4X	24.89 mm	0.98 in	Brass Nickel Plated	1.26 in	32 mm		Sealing Ring
Pflitsch 96574.6/15	-40 C	300 °C	Silver			Cable Feedthrough	20.07 mm	0.79 in	M32x1.5	IP68 - Dust Tight Waterproof NEMA 4X	24.89 mm	0.98 in	Brass Nickel Plated	1.26 in	32 mm		Sealing Ring
Pflitsch 96574.7.1	-40 C	130 °C	Silver	0.315 "	8 mm	Cable Feedthrough	15 mm	0.591 in	M32x1.5	IP68 IP69K		0.984 in	Stainless Steel	1.26 in	32 mm	25 mm

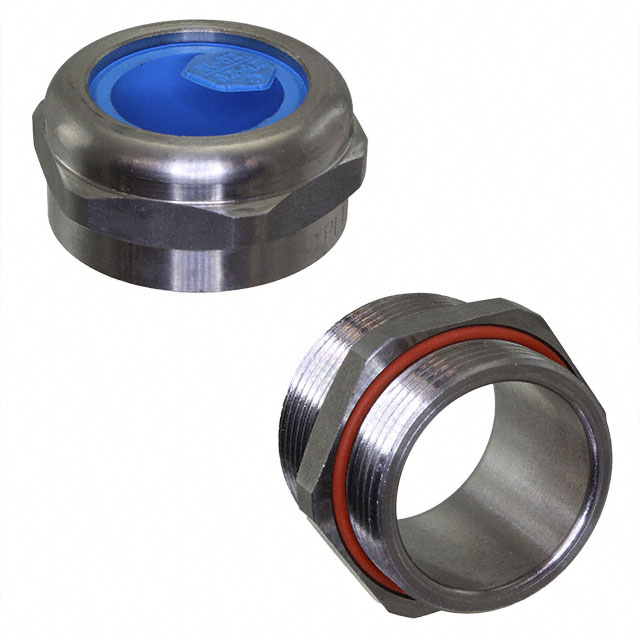

Pflitsch 96574.7	-60 °C	500 °C	Silver	0.31 "	7.87 mm	Cable Feedthrough	20.07 mm	0.79 in	M32x1.5	IP68 - Dust Tight Waterproof NEMA 4X	24.89 mm	0.98 in	Stainless Steel	1.26 in	32 mm		Sealing Ring
