R60555 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

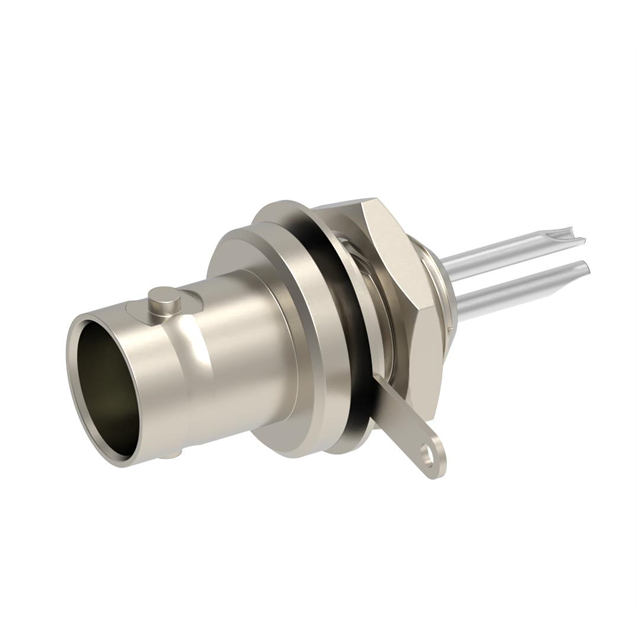

CONN BNC RECEPT PNLMT SOLDER
| Part | Center Contact Plating | Body Material | Mating Cycles | Body Finish | Voltage Rating | Dielectric Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Mounting Type | Number of Ports | Contact Termination | Frequency - Max [Max] | Mounting Feature | Impedance | Housing Color | Connector Type | Shield Termination | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Silver | Brass | 500 | Nickel | 500 V | Nylon 6/6 Polyamide (PA66) | 1 Connector 1 Lockwasher 1 Nut | -40 C | 100 °C | Beryllium Copper | Panel Mount | 1 | Solder Cup | 500 MHz | Bulkhead - Rear Side Nut | 50 Ohms | Silver | Receptacle Female Socket | Solder | Bayonet Lock | |
 Radiall USA, Inc. | Gold | Brass | 500 | Nickel | 500 V | Polyamide (PA) Nylon | -40 C | 100 °C | Beryllium Copper | Panel Mount | 1 | Solder Cup | 500 MHz | Bulkhead - Rear Side Nut | 80 Ohms | Silver | Receptacle Female Socket | Solder | Bayonet Lock | BR2 |
