2118898 Series

Catalog

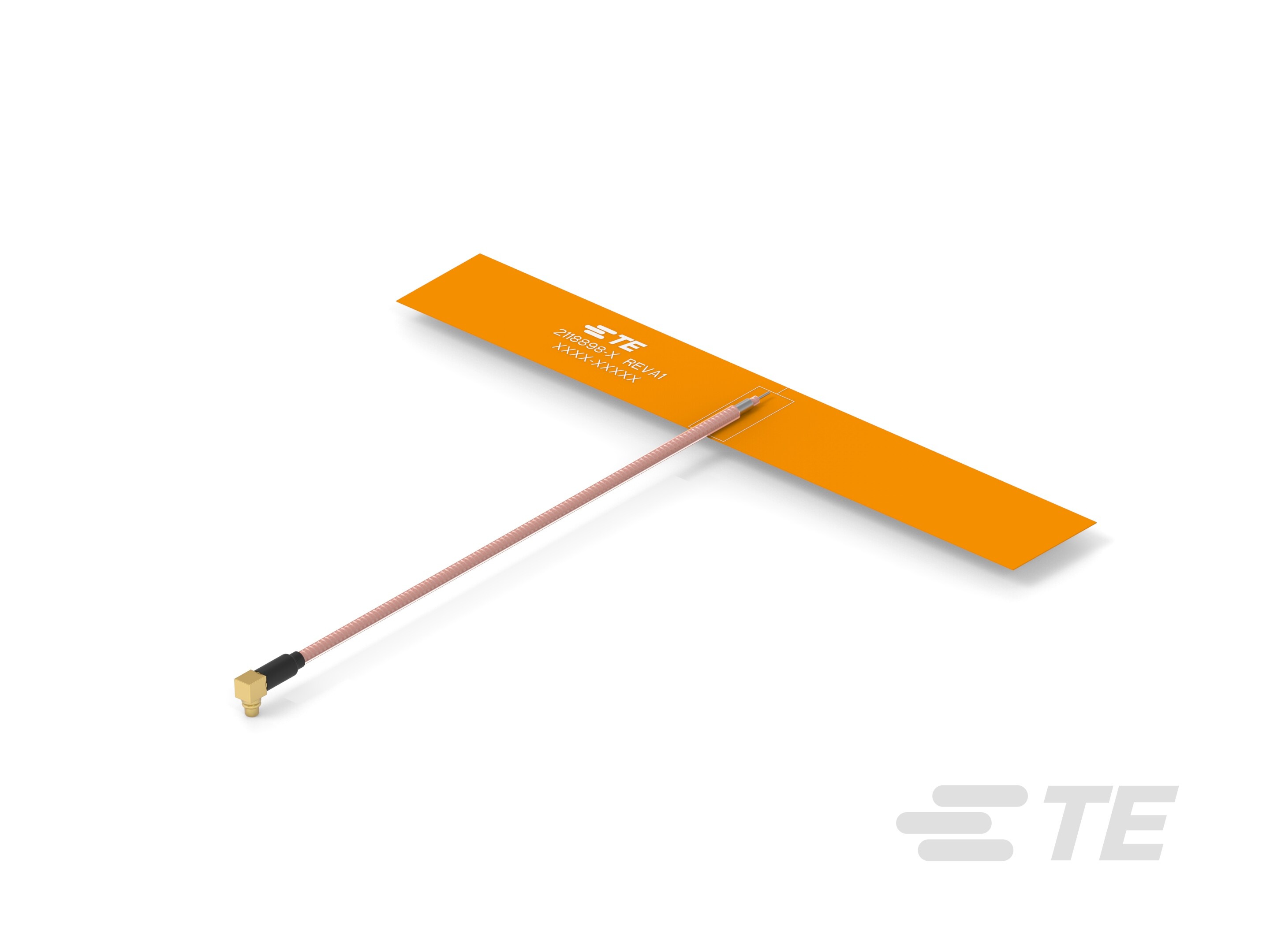

ANTENNAS 902-928&2400-2483.5 DUAL BAND ANTENNA

Part	RF Family/Standard	Gain	Number of Bands	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	VSWR	Height (Max)	Height (Max) [Max]	Antenna Type	Frequency (Center/Band)	Applications	Frequency Group [Min]	Frequency Group [Max]

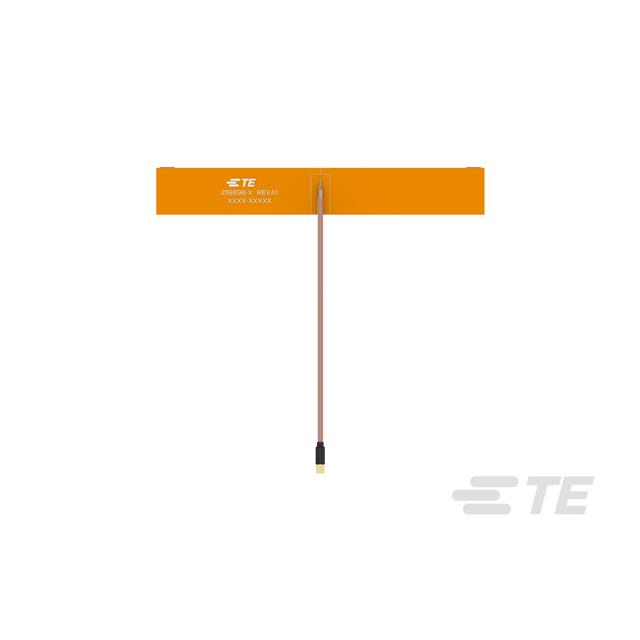

TE Connectivity Raychem Cable Protection 2118898-1	802.15.4 Bluetooth WiFi	1 dBi 4 dBi	2	Adhesive	2.4 GHz 902 MHz	2.4835 GHz 928 MHz	2	0.3 mm	0.012 in	PCB Trace	2.44 GHz 915 MHz	Bluetooth Wi-Fi Zigbee™	2 GHz 300 MHz	1 GHz 3 GHz
TE Connectivity Raychem Cable Protection 2118898-2	802.15.4 Bluetooth WiFi	1 dBi 4 dBi	2	Adhesive	2.4 GHz 902 MHz	2.4835 GHz 928 MHz	2	0.3 mm	0.012 in	PCB Trace	2.44 GHz 915 MHz	Bluetooth Wi-Fi Zigbee™	2 GHz 300 MHz	1 GHz 3 GHz
