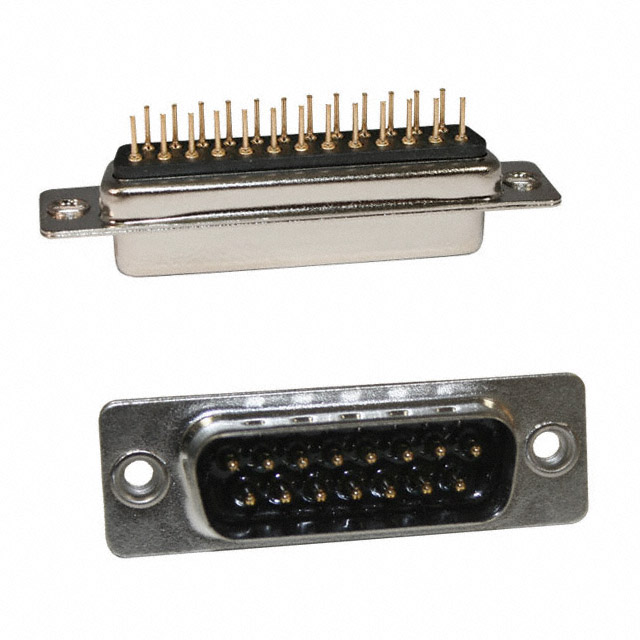

671-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K
671-025-103L001 ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Color | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Dielectric Material | Shell Material, Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Contact Type | Features | Contact Finish | Contact Finish Thickness | Number of Rows [custom] | Connector Style | Flange Feature | Ingress Protection | Material Flammability Rating | Number of Positions | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Stamped | Black | Brass | 28 AWG | 19.5 AWG | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | 5 A | B DB | 3 | Plug Male Pins | Signal | Grounding Indents | Gold | Flash | 2 | D-Sub | Housing/Shell (Unthreaded) | IP66 - Dust Tight Water Resistant | UL94 V-0 | 25 | Panel Mount | |
NorComp Inc. | 100 °C | -50 °C | Stamped | Black | Brass | 28 AWG | 19.5 AWG | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | 5 A | B DB | 3 | Plug Male Pins | Signal | Grounding Indents | Gold | Flash | 2 | D-Sub | Cable Side (4-40) | IP66 - Dust Tight Water Resistant | UL94 V-0 | 25 | Panel Mount | |
NorComp Inc. | 100 °C | -50 °C | Stamped | Black | Brass | 28 AWG | 19.5 AWG | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | 5 A | B DB | 3 | Plug Male Pins | Signal | Grounding Indents | Gold | Flash | 2 | D-Sub | 4-40 | IP66 - Dust Tight Water Resistant | UL94 V-0 | 25 | Panel Mount | |
NorComp Inc. | 100 °C | -50 °C | Stamped | Black | Brass | Nylon 9T Polyamide (PA9T) | Nickel Plated Steel | 5 A | B DB | 3 | Plug Male Pins | Signal | Grounding Indents | Gold | Flash | 2 | D-Sub | Board Side (4-40) | IP66 - Dust Tight Water Resistant | UL94 V-0 | 25 | Panel Mount Through Hole | Solder |
