EDT107M Series

Manufacturer: KEMET

Catalog

CAP ALUM 100UF 20% 25V SMD

Part	Mounting Type	Capacitance	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Polarization	Applications	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Ratings	Height - Seated (Max) [Max]
KEMET EDT107M025A9LAA	Surface Mount	100 µF	1000 Hrs	125 °C	-40 C	Radial Can - SMD	107.143 mA	0.315 in	8 mm	25 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	Polar	General Purpose	20 %	6.5 mm	0.256 in	75 mA
KEMET EDT107M016A9LAA	Surface Mount	100 µF	1000 Hrs	125 °C	-40 C	Radial Can - SMD	107.143 mA	0.315 in	8 mm	16 V	8.3 mm	8.3 mm	0.327 in	0.327 in	Polar	General Purpose	20 %	6.5 mm	0.256 in	75 mA
KEMET EDT107M050S9PAA	Surface Mount	100 µF	2000 Hrs	125 °C	-40 C	Radial Can - SMD	257.143 mA	0.394 in	10 mm	50 VDC	10.3 mm	10.3 mm	0.406 "	0.406 in	Polar	Automotive	20 %		10.5 mm	180 mA	AEC-Q200	0.413 "
KEMET EDT107M025A9MAA	Surface Mount	100 µF	2000 Hrs	125 °C	-40 C	Radial Can - SMD	156 mA	0.315 in	8 mm	25 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	Polar	General Purpose	20 %		10.5 mm	130 mA		0.413 "

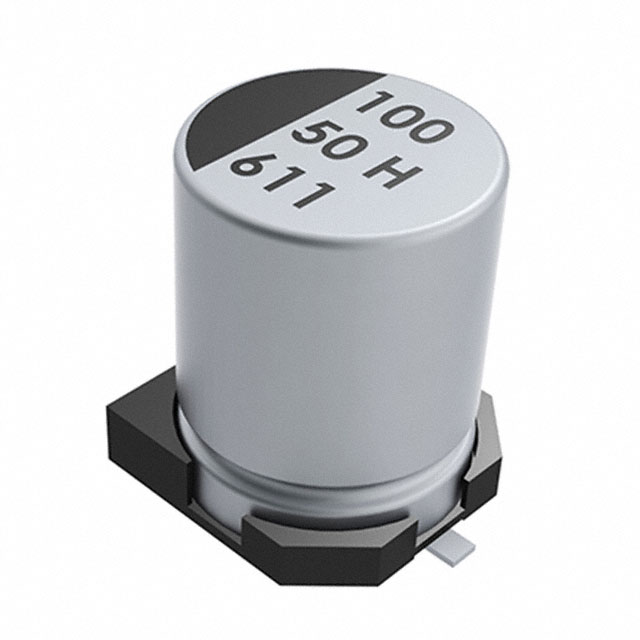

KEMET EDT107M050A9PAA	Surface Mount	100 µF	2000 Hrs	125 °C	-40 C	Radial Can - SMD	180 mA	0.394 in	10 mm	50 VDC	10.3 mm	10.3 mm	0.406 "	0.406 in	Polar	General Purpose	20 %		10.5 mm	150 mA		0.413 "
