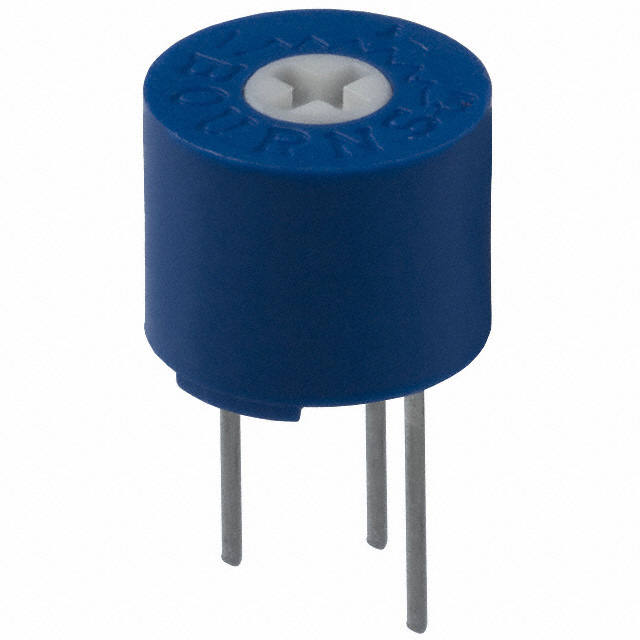

3339P Series

Catalog

TRIMMER, MULTI TURN, CERMET, TOP ADJUST, 2 KOHM, THROUGH HOLE, 4 TURNS

Part	Mounting Type	Adjustment Type	Resistance	Resistive Material	Termination Style	Number of Turns	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Tolerance	Power (Watts)	Power (Watts)
Bourns Inc. 3339P-1-202LF	Through Hole	Top Adjustment	2 kOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-500LF	Through Hole	Top Adjustment	50 Ohms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-204	Through Hole	Top Adjustment	200000 Ohms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-105LF	Through Hole	Top Adjustment	1 MOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-101	Through Hole	Top Adjustment	100 Ohms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-223LF	Through Hole	Top Adjustment	22 kOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-203LF	Through Hole	Top Adjustment	20 kOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-102LF	Through Hole	Top Adjustment	1000 Ohms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-253	Through Hole	Top Adjustment	25 kOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
Bourns Inc. 3339P-1-202	Through Hole	Top Adjustment	2 kOhms	Cermet	PC Pins	4	100 ppm/°C	7.62 mm	Round	0.3 in	10 %	0.5 W	0.5 W
