5696 Series

Manufacturer: BRADY

Catalog

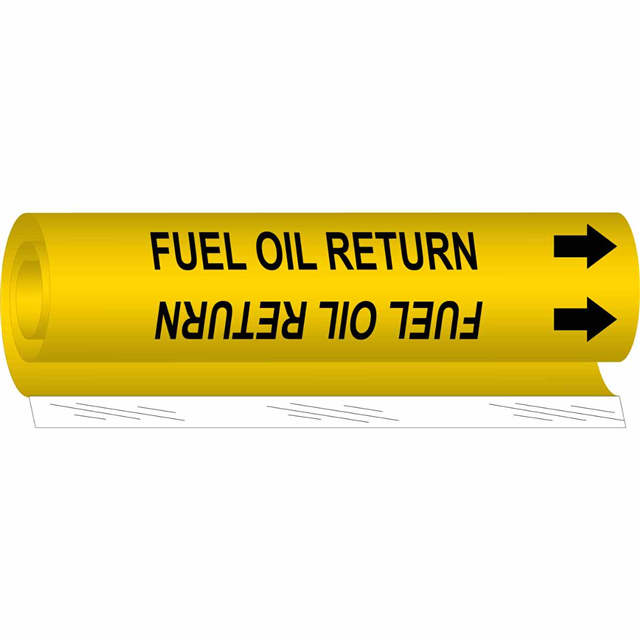

B689 5696-I BLK/YEL STYLE I

Part	Arrangement	Length	Length	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Shape	Language	Material - Body	Mounting Type	Application Specifics	Color - Background	Features	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Legend (Symbol Only)	Applications	Legend (Text)	Location	Print Type	Color - Legend	Width	Width	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]
BRADY 5696-I	Symbol and Text	9 in	228.6 mm	1.5 in	38.1 mm	Rectangle	63000 A 69000 A	Plastic	Snap On	Notice	Yellow	Chemical Resistant	60.33 mm	2.375 in	Directional Arrow	Pipe	Fuel Oil Return	Outdoor	Pre-Printed	Black	8 in	203.2 mm
BRADY 5696-II	Text Only					Rectangle	63000 A 69000 A	Plastic	Snap On	Notice	Yellow	Chemical Resistant		7.875 in	No Symbol	General	Fuel Oil Return	Outdoor	Pre-Printed	Black	12 in	304.8 mm	63.5 mm	2.5 in	660.4 mm	26 in	200.03 mm
BRADY 5696-O	Symbol and Text	8 in	203.2 mm			Rectangle	63000 A 69000 A	Plastic	Snap On	Directionality	Yellow	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	34.93 mm	1.375 in	Directional Arrow	Pipe	Fuel Oil Return	Outdoor	Pre-Printed	Black								0.5 in	12.7 mm	127 mm	127 mm
