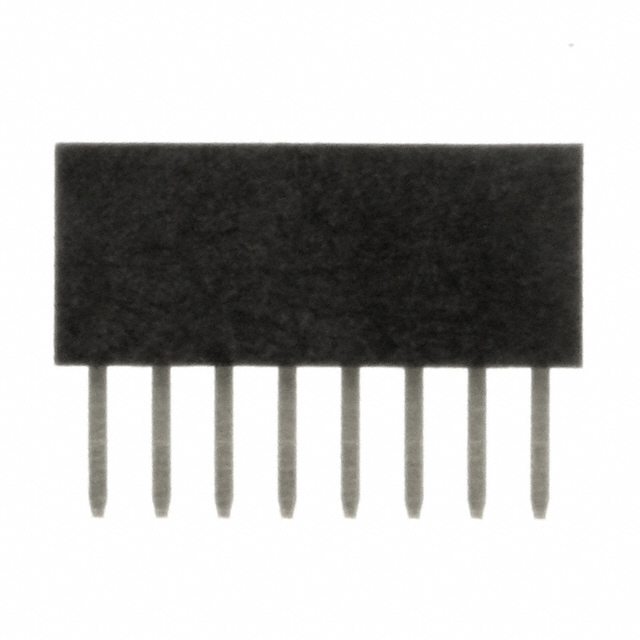

LPPB081 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 8POS 0.05 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Rows | Number of Positions | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish - Mating | Termination | Contact Finish - Post | Contact Type | Connector Type | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Flash | Square | Phosphor Bronze | -40 C | 105 ░C 125 °C | 1.27 mm | 0.05 in | UL94 V-0 | 1 | 8 | 0.177 in | 4.5 mm | 0.118 in | 3 mm | All | Flash | Gold | Solder | Gold | Female Socket | Header | Through Hole | Push-Pull |
