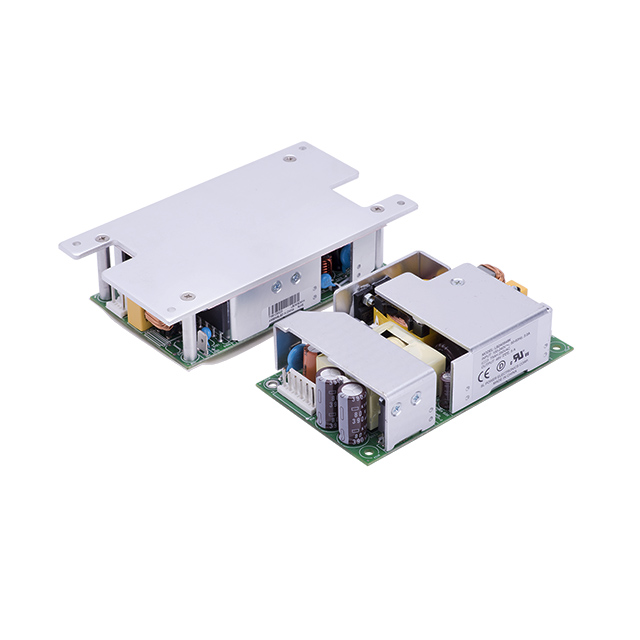

LB240S48 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 48V 240W
| Part | Minimum Load Required | Number of Outputs | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Output 1 | Efficiency | Mounting Type | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 1 | ITE (Commercial) | Open Frame | 70 °C | -10 °C | CE | 48 V | 92 % | Chassis Mount | 5 A | 5 " | 76.2 mm | 3 " | 127 mm | 31.1 mm | 1.22 in | 3000 V | 264 VAC | 90 VAC | 240 Watts | PFC Universal Input |
