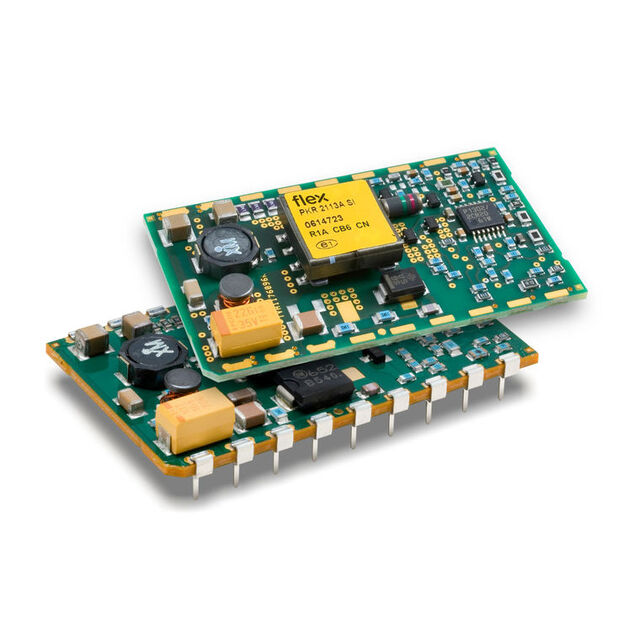

PKR222 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER +/-12V 15W
| Part | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Input (Max) [Max] | Voltage - Output 2 | Number of Outputs | Voltage - Isolation | Package / Case | Applications | Current - Output (Max) | Voltage - Output 1 | Voltage - Input (Min) [Min] | Control Features | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Standard Number | Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | Surface Mount | Adjustable Output Remote On/Off | -45 °C | 110 °C | 87.1 % | 36 V | -12 V | 2 | 1.5 kV | 18-SMD Module | ITE (Commercial) | 0.62 A | 12 V | 18 V | Active Low Enable | CB CSA IEC TUV UL | 8 mm | 47.8 mm | 1.88 in | 0.31 " | 28.1 mm | 1.11 in | 62368-1 | Isolated Module | 15 W |
