ESH476M Series

Manufacturer: KEMET

Catalog

CAP ALUM 47UF 20% 100V RADIAL TH

Part	Mounting Type	Package / Case	Applications	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Capacitance	Voltage - Rated	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESH476M100AH2AA	Through Hole	Can Radial	General Purpose	20 %	420 mA	0.669 "	17 mm	0.394 in	10 mm	210 mA	47 µF	100 V	0.197 "	5 mm	-40 C	105 ░C	2000 Hrs	Polar
KEMET ESH476M050AE3AA	Through Hole	Can Radial	General Purpose	20 %	230 mA		0.492 in	0.248 "	6.3 mm	115 mA	47 µF	50 VDC	0.098 in	2.5 mm	-40 C	105 ░C	2000 Hrs	Polar	12.5 mm

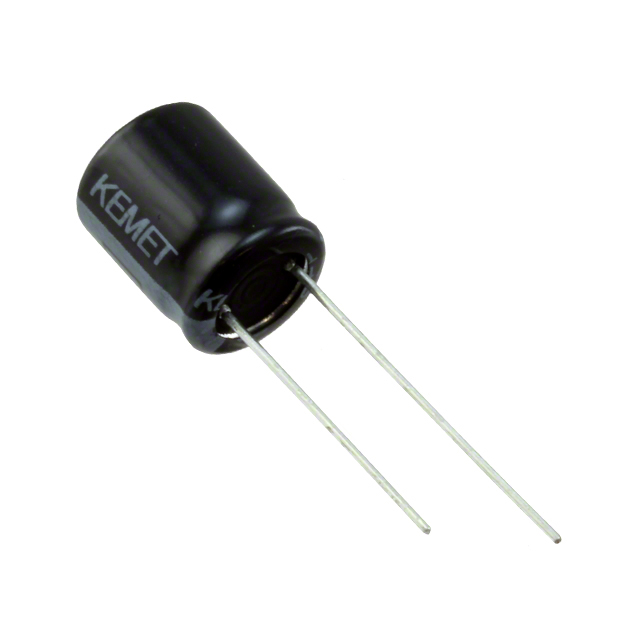

KEMET ESH476M100AH9AA	Through Hole	Can Radial	General Purpose	20 %	277.5 mA		14 mm	0.394 in	10 mm	185 mA	47 µF	100 V	0.197 "	5 mm	-40 C	105 ░C	2000 Hrs	Polar		0.551 in
KEMET ESH476M010AC3AA	Through Hole	Can Radial	General Purpose	20 %	150 mA		0.492 in	0.197 in	5 mm	75 mA	47 µF	10 V	0.079 in	2 mm	-40 C	105 ░C	2000 Hrs	Polar	12.5 mm
