MPM3810 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

DC/DC CONV, SYNC BUCK, 3.5MHZ, 125DEG C

Part	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Applications	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Features	Supplier Device Package	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Contents	Frequency - Switching	Regulator Topology	Utilized IC / Part	Current - Output	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Grade	Qualification

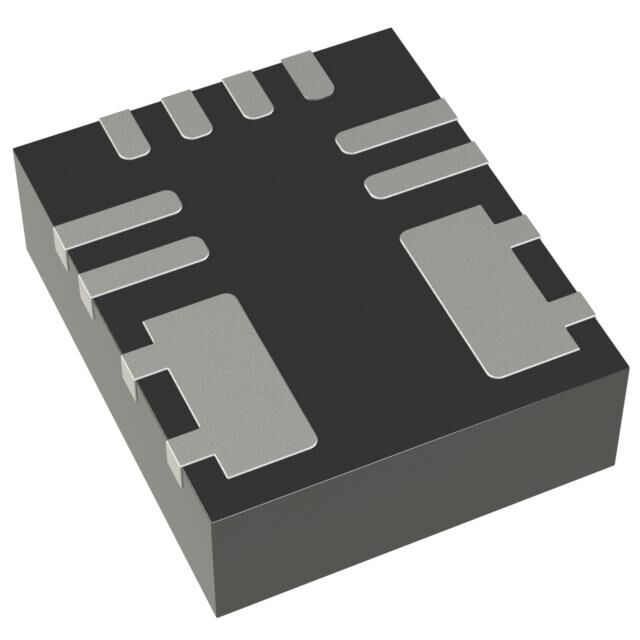

Monolithic Power Systems Inc. MPM3810GQB-25-P	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1	2.5 V	OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C
Monolithic Power Systems Inc. EVM3810A-QB-00A																				Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	1.2 V	6 V	2.5 V	DC/DC Step Down	Board(s)	3.5 MHz	Buck	MPM3810A	1.2 A
Monolithic Power Systems Inc. MPM3810GQB-33-Z	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1	3.3 V	OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C
Monolithic Power Systems Inc. MPM3810GQB-Z	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1		OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C														6 V	0.6 V

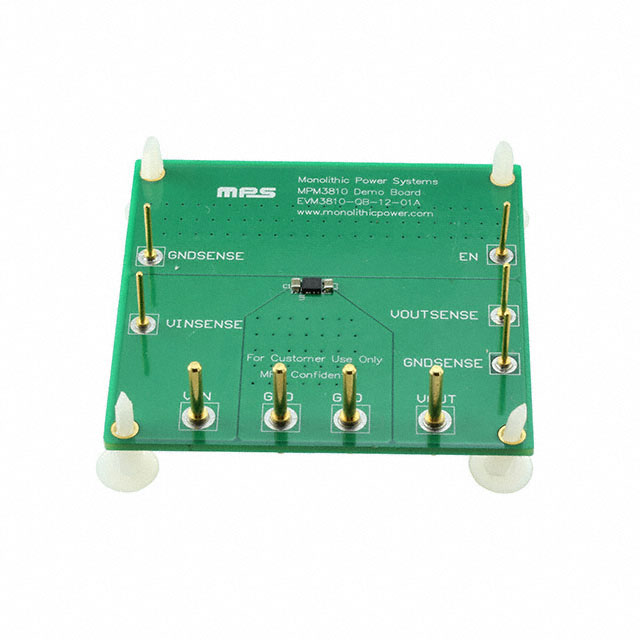

Monolithic Power Systems Inc. EVM3810-QB-12-01A																				Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	1.2 V	6 V	2.5 V	DC/DC Step Down	Board(s)	3.5 MHz	Buck	MPM3810-12	1.2 A
Monolithic Power Systems Inc. MPM3810GQB-18-P	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1	1.8 V	OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C
Monolithic Power Systems Inc. MPM3810GQB-P	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1		OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C														6 V	0.6 V
Monolithic Power Systems Inc. MPM3810GQB-33-P	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1	3.3 V	OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C
Monolithic Power Systems Inc. MPM3810AGQB-AEC1-Z	Surface Mount	12-PowerVFQFN Module	2.6 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1		OCP OTP SCP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C														6 V	0.6 V	Automotive	AEC-Q100
Monolithic Power Systems Inc. MPM3810GQB-12-Z	Surface Mount	12-PowerVFQFN Module	2.5 V	ITE (Commercial)	Non-Isolated PoL Module	0.9 mm	0.04 in	2.5 mm	3 mm	0.12 inches	0.1 in	1.2 A	1	1.2 V	OCP OTP UVLO	12-QFN (3x2.5)	6 V	125 °C	-40 C
