GST25U12 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 25W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Polarization	Region Utilized	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [custom]	Voltage - Output	Efficiency	Form	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Input Connector	No Load Power Consumption	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	Power (Watts)	Applications	Output Connector [diameter]	Output Connector [z]	Output Connector [x]
MEAN WELL USA Inc. GST25U12-P1MR	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America	5.5 mm	11 mm	Barrel Plug R/A	2.5 mm	12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)
MEAN WELL USA Inc. GST25U12-P1LR	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America			Barrel Plug R/A		12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm
MEAN WELL USA Inc. GST25U12-P1IR	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America	5.5 mm	9.5 mm	Barrel Plug R/A	2.1 mm	12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)
MEAN WELL USA Inc. GST25U12-P1JR	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America	5.5 mm		Barrel Plug R/A	2.1 mm	12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)			11 mm

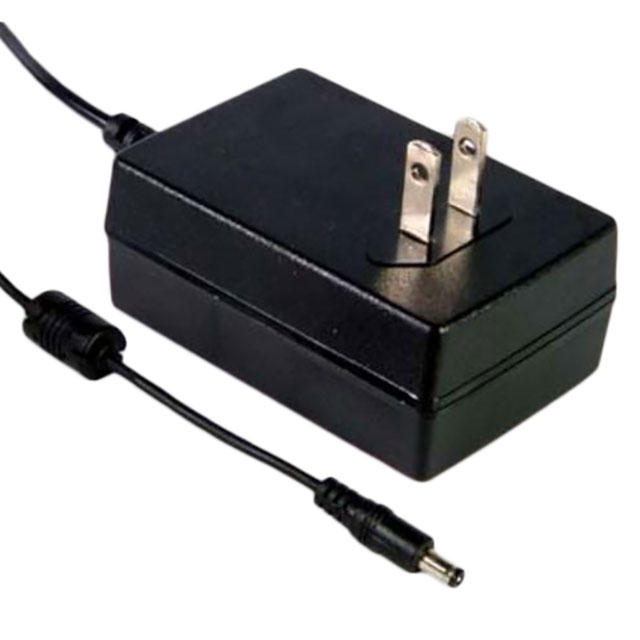

MEAN WELL USA Inc. GST25U12-P1M	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America			Barrel Plug		12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)	2.5 mm 5.5 mm		11 mm
MEAN WELL USA Inc. GST25U12-P1J	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America			Barrel Plug		12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)	2.1 mm 5.5 mm		11 mm
MEAN WELL USA Inc. GST25U12-P1L	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America			Barrel Plug		12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)	2.5 mm 5.5 mm		9.5 mm
MEAN WELL USA Inc. GST25U12-P1I	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	Positive Center	North America			Barrel Plug		12 V	Level VI	Wall Mount	-30 ░C	70 °C	BSMI CB cULus EAC	NEMA 1-15P	75 mW	Fixed Blade	1 m	39.4 in	2.08 A	25 W	ITE (Commercial)	2.1 mm 5.5 mm		9.5 mm
