9003-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

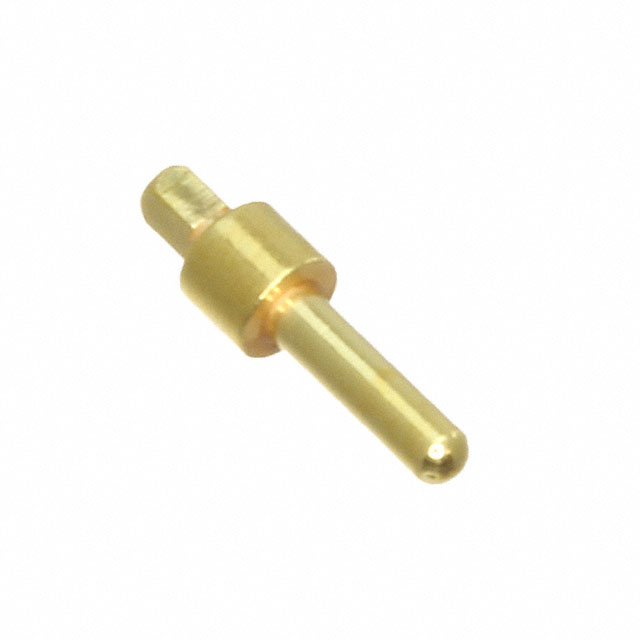

PRESS-FIT PCB PIN
| Part | Contact Finish | Terminal Type | Terminal Style | Mounting Type | Length - Overall | Length - Overall | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | PC Pin | Single End | Through Hole | 0.28 in | 7.11 mm | Non-Insulated | 0.04 in | 1.02 mm | 1.19 mm | 0.047 in | Press-Fit | 0.16 in | 4.06 mm | Brass Alloy | 0.078 " | 1.98 mm | 0.25 Ám | 10 Áin | 0.06 " | 1.52 mm |
