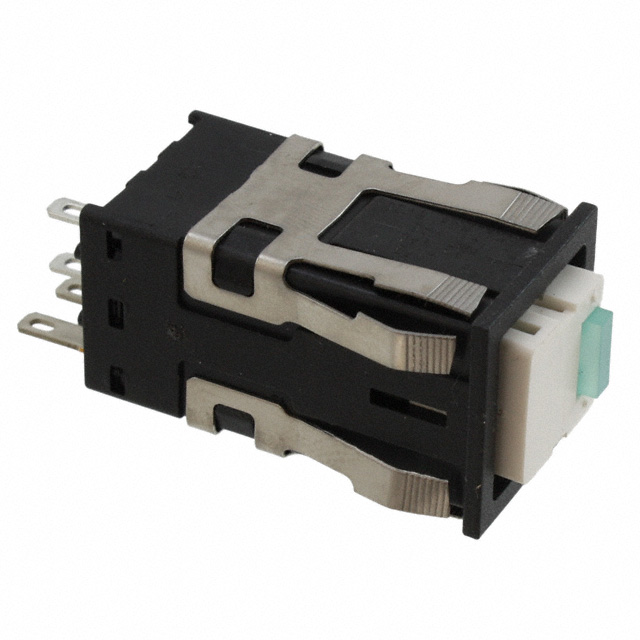

AML22 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH PUSHBUTTON SPDT 3A 125V
| Part | Electrical Life | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Actuator Type | Circuit | Voltage Rating - DC | Actuator Marking | Mechanical Life | Type | Switch Function | Illumination Type, Color | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Illumination Voltage (Nominal) | Termination Style | Termination Style | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | SPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | LED Red | 19.05 mm | 19.05 mm | 5 VDC | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||
Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | DPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | LED Red | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | DPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-On | Green LED | 19.05 mm | 19.05 mm | 2.4 VDC | 0.11 in | Quick Connect Solder | 2.8 mm | Epoxy Sealed Terminals |
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | SPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | Green LED | 19.05 mm | 19.05 mm | 5 VDC | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | SPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | LED Red | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 100 mA | Panel Mount Snap-In | 125 V | Square Button (Not Included) | SPDT | 125 VDC | No Marking | 100000 Cycles | Illuminated Standard | On-Mom | LED Yellow | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | Epoxy Sealed Terminals |
Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | SPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | LED Red | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | 25000 Steps | 2 A 3 A | Panel Mount Snap-In | 125 V | Square Button (Not Included) | DPDT | 24 V | No Marking | 25000 Steps | Illuminated Standard | On-Mom | LED Yellow | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 100 mA | Panel Mount Snap-In | 125 V | Square Button (Not Included) | DPDT | 125 VDC | No Marking | 100000 Cycles | Illuminated Standard | On-Mom | Green LED | 19.05 mm | 19.05 mm | 24 V | 0.11 in | Quick Connect Solder | 2.8 mm | Epoxy Sealed Terminals |
