NCV8570B Series

LDO Regulator, 200 mA, Low Dropout, Ultra-High PSRR, Ultra-Low Noise

Catalog

LDO Regulator, 200 mA, Low Dropout, Ultra-High PSRR, Ultra-Low Noise

Part	Supplier Device Package	PSRR [Max]	PSRR [Min]	Current - Output	Output Configuration	Voltage - Output (Min/Fixed)	Qualification	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage Dropout (Max) [Max]	Grade	Control Features	Voltage - Input (Max) [Max]	Number of Regulators	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Output Type	Mounting Type
ON Semiconductor NCV8570MN280R2G	6-DFN (2x2.2)	80 dB	65 dB	200 mA	Positive	2.8 V	AEC-Q100	Over Current Over Temperature	85 °C	-40 °C	6-VDFN Exposed Pad	0.205 V	Automotive	Enable	5.5 V	1	220 µA	90 çA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570MN300R2G	6-DFN (2x2.2)	80 dB	65 dB	200 mA	Positive		AEC-Q100	Over Current Over Temperature	85 °C	-40 °C	6-VDFN Exposed Pad	0.2 V	Automotive	Enable	5.5 V	1	220 µA	90 çA	1.81 mOhm	Surface Mount

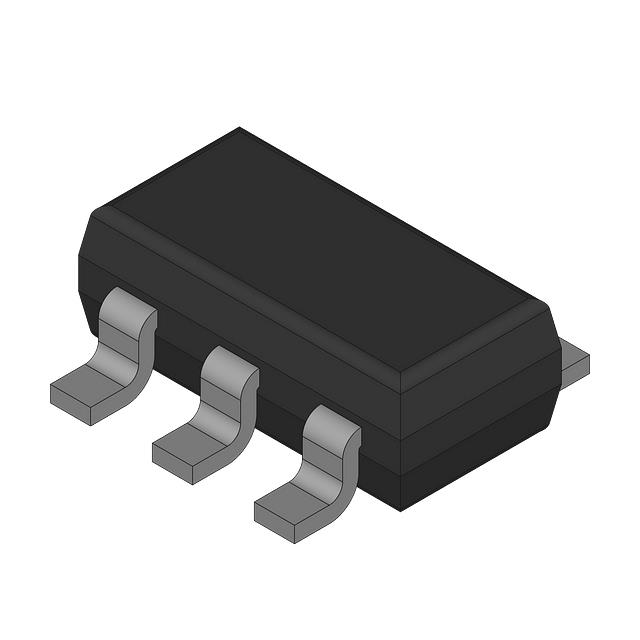

ON Semiconductor NCV8570BSN30T1G	5-TSOP	82 dB	63 dB	200 mA	Positive		AEC-Q100	Over Current Over Temperature	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5	0.19 V	Automotive	Enable	5.5 V	1	130 µA	110 µA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570MN180R2G	6-DFN (2x2.2)	80 dB	65 dB	200 mA	Positive	1.8 V	AEC-Q100	Over Current Over Temperature	85 °C	-40 °C	6-VDFN Exposed Pad		Automotive	Enable	5.5 V	1	220 µA	90 çA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570BMN180R2G	6-DFN (2x2.2)	82 dB	63 dB	200 mA	Positive	1.8 V	AEC-Q100	Over Current Over Temperature	125 °C	-40 °C	6-VDFN Exposed Pad		Automotive	Enable	5.5 V	1	130 µA	110 µA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570BSN33T1G	5-TSOP	82 dB	63 dB	200 mA	Positive	3.3 V	AEC-Q100	Over Current Over Temperature	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5	0.185 V	Automotive	Enable	5.5 V	1	130 µA	110 µA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570MN330R2G	6-DFN (2x2.2)	80 dB	65 dB	200 mA	Positive	3.3 V	AEC-Q100	Over Current Over Temperature	85 °C	-40 °C	6-VDFN Exposed Pad	0.2 V	Automotive	Enable	5.5 V	1	220 µA	90 çA	1.81 mOhm	Surface Mount
ON Semiconductor NCV8570SN28T1G
ON Semiconductor NCV8570BMN280R2G	6-DFN (2x2.2)	82 dB	63 dB	200 mA	Positive	2.8 V	AEC-Q100	Over Current Over Temperature	125 °C	-40 °C	6-VDFN Exposed Pad	0.205 V	Automotive	Enable	5.5 V	1	130 µA	110 µA	1.81 mOhm	Surface Mount

Catalog

LDO Regulator, 200 mA, Low Dropout, Ultra-High PSRR, Ultra-Low Noise

Key Features

• Operating Input Voltage Range: 2.5V to 5.5V

• High Ripple Rejection Ratio: Typ. 82dB @ 1kHz

• Ultra-Low Output Noise: Typ. 10µVrms from 10Hz to 100kHz

• Stable with output capacitors as low as 1µF

• Active Discharge

• Output Voltage Options: 1.8V, 2.8V, 3.0V, 3.3V

• Low Sleep Mode Current: Max. 1A

• Current Limit Protection

• Thermal Shutdown Protection

• Output Current Limit: Min. 200mA

• No-Load Ground Current of Typ. 70µA

• Full-Load Ground Current of Typ. 75µA

• Output voltage accuracy: ±2.5% over Load/Line Regulation and Temperature

• AECQ100 qualified and PPAP capable

Description

Noise sensitive RF applications such as Power Amplifiers in satellite radios, infotainment equipment, and precision instrumentation for automotive applications require very clean power supplies.The NCV8570 Low Dropout (LDO) Linear Voltage Regulator is a 200 mA LDO that provides the engineer with a very stable, accurate voltage with ultra low noise and very high Power Supply Rejection Ratio (PSRR) suitable for RF applications. In order to optimize performance for battery operated portable applications, the NCV8570 employs an advanced BiCMOS process to combine the benefits of low noise and superior dynamic performance of bipolar elements with very low ground current consumption at full loads offered by CMOS.Furthermore, in order to provide a small footprint for space-conscious applications, the NCV8570 is stable with small, low value capacitors and is available in a very small DFN6 2x2.2 and TSOP-5 packages.NOTE FOR NEW DESIGNS THE NCV8570B IS RECOMMENDED IN PLACE NCV8570.
