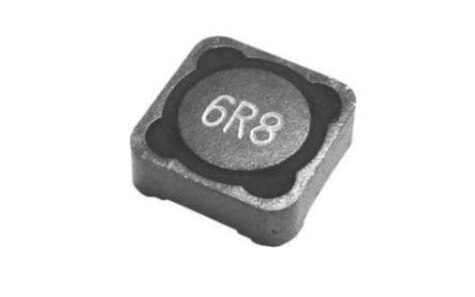

BPCI Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Beta
⌘K
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
| Part | Material - Core | Tolerance | Shielding | Current - Saturation (Isat) | Current Rating | Height - Seated (Max) | Inductance Frequency - Test | Inductance | Size / Dimension Width | Size / Dimension Length | DC Resistance (DCR) (Max) | Mounting Type | Type | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Ferrite | 20 % | Shielded | 3.24 A | 2.9 A | 0.236 in | 100 kHz | 47 µH | 0.472 in | 0.472 in | 92.5 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
 Pulse Electronics | Ferrite | 20 % | Shielded | 5.2 A | 4.6 A | 0.197 in | 100 kHz | 15 µH | 0.472 in | 0.472 in | 42.5 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 30 % | Shielded | 7.5 A | 7.5 A | 0.315 in | 100 kHz | 3.3 µH | 0.472 in | 0.472 in | 13.5 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
 Pulse Electronics | Ferrite | 20 % | Shielded | 1.8 A | 1.23 A | 0.315 in | 100 kHz | 200 µH | 0.472 in | 0.472 in | 370 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 20 % | Shielded | 5.9 A | 4.8 A | 0.181 in | 100 kHz | 3.3 µH | 0.287 in | 0.287 in | 16.9 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 10 % | Shielded | 0.54 mA | 0.54 A | 0.236 in | 100 kHz | 560 µH | 0.472 in | 0.472 in | 860 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 20 % | Shielded | 1.7 A | 1.6 A | 0.197 in | 100 kHz | 150 µH | 0.472 in | 0.472 in | 370 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 30 % | Shielded | 3 A | 3 A | 0.236 in | 100 kHz | 18 µH | 0.472 in | 0.472 in | 34 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 20 % | Shielded | 0.56 mA | 580 mA | 0.394 in | 100 kHz | 1.5 mH | 0.472 in | 0.472 in | 1.99 Ohm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
Pulse Electronics | Ferrite | 30 % | Shielded | 4 A | 4 A | 0.181 in | 100 kHz | 3.3 µH | 0.287 in | 0.287 in | 21.4 mOhm | Surface Mount | Multilayer | 125 °C | -40 °C | Nonstandard |
