09390060 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY POWER CONNECTORS HOOD TOP ENTRY HAN HP
| Part | Style | Lock Location | Connector Type | Thread Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Ingress Protection | Housing Color | Housing Finish | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | |||||||||||||||||

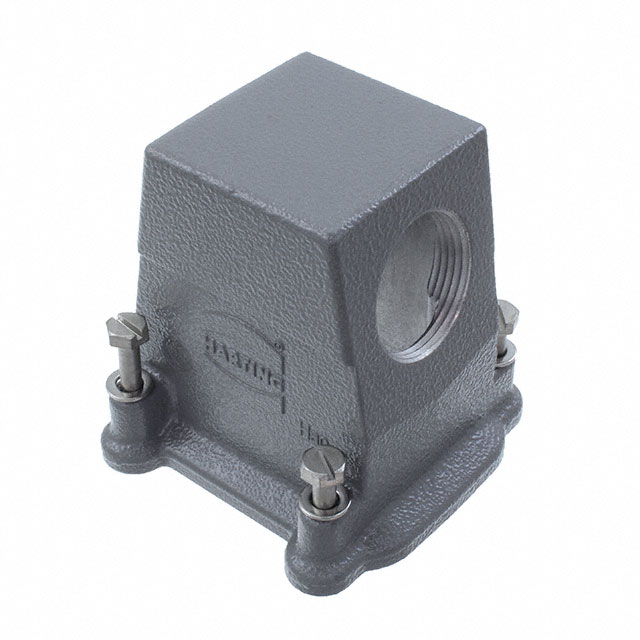

HARTING | Side Entry | Screw Locks on Hood | Hood | PG16 | 75 mm | 2.795 " | 71 mm | 73 mm | 2.874 " | 2.953 " | |||||||
 HARTING | Side Entry | Screw Locks on Hood | Hood | PG21 | 75 mm | 2.795 " | 71 mm | 73 mm | 2.874 " | 2.953 " | |||||||
HARTING | Top Entry | Screw Locks on Hood | Hood | PG21 | 75 mm | 2.795 " | 71 mm | 73 mm | 2.874 " | 2.953 " | |||||||

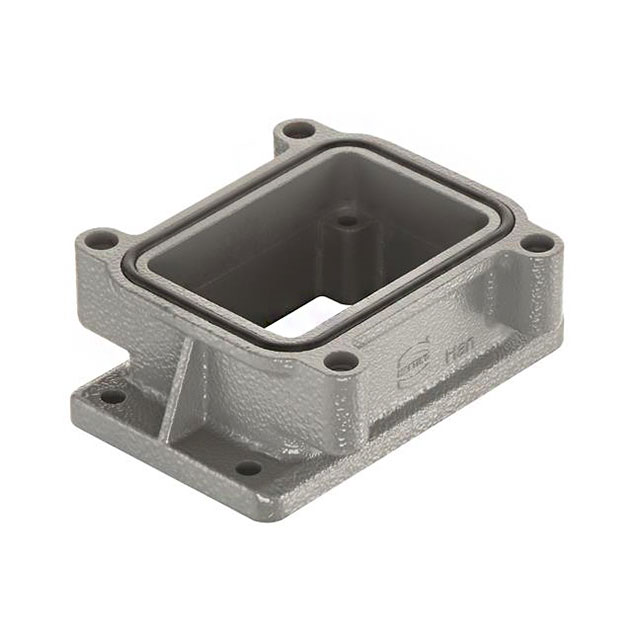

 HARTING | Bottom Entry | Screw Locks on Hood | Base - Panel Mount | IP66 IP68 IP69K | Gray | Powder Coated | Aluminum Die Cast | 125 °C | -40 C | 6B |
