VM3SB Series

Catalog

SWITCH LIMIT SPST-NC 10A 125V

Part	Voltage Rating - AC	Operating Position	Operating Position	Operating Force	Voltage Rating - DC	Circuit	Termination Style	Mounting Type	Overtravel [custom]	Overtravel [custom]	Switch Function	Actuator Type	Differential Travel	Differential Travel	Release Force	Electrical Life	Pretravel	Pretravel	Mechanical Life	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Differential Travel
CIT Relay and Switch VM3SBQF3003L04	125 V	0.591 in	15 mm	300 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	0.5 mm	0.02 "	On-Mom	Lever Straight	1 mm	0.04 in	250 gf	50000 Cycles	2 mm	0.08 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

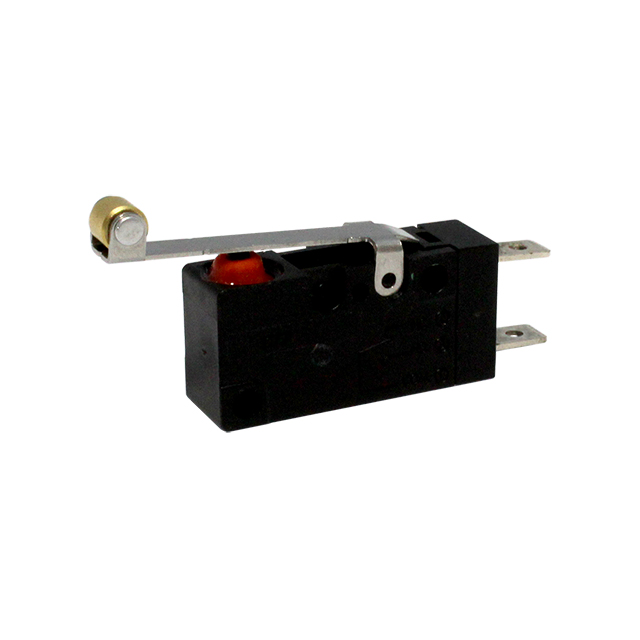

CIT Relay and Switch VM3SBGF3002L01	125 V	0.795 in	20.2 mm	210 gf	36 VDC	SPST-NC	Quick Connect	Chassis Mount	0.8 mm	0.031 "	On-Mom	Lever Roller	0.05 in			50000 Cycles	3 mm	0.118 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A	1.3 mm
CIT Relay and Switch VM3SBQF1803L04	125 V	0.602 in	15.3 mm	190 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	0.5 mm	0.02 "	On-Mom	Lever Straight	1 mm	0.04 in	80 gf	50000 Cycles	1.8 mm	0.071 "	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

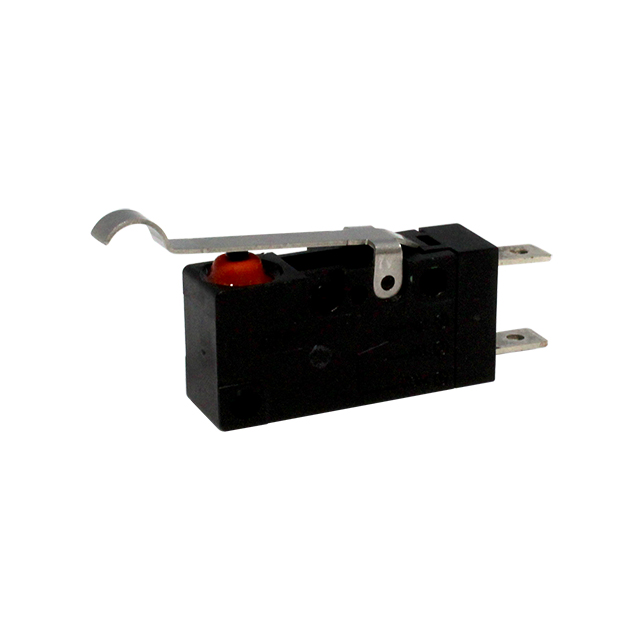

CIT Relay and Switch VM3SBGF3002L02	125 V	0.72 in	18.3 mm	0.2 kgf	36 VDC	SPST-NC	Quick Connect	Chassis Mount	0.6 mm	0.024 "	On-Mom	Lever Simulated Roller	1.5 mm	0.06 in	180 gf	50000 Cycles	3 mm	0.118 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A
CIT Relay and Switch VM3SBGF3002L00	125 V	0.581 in	14.75 mm	320 gf	36 VDC	SPST-NC	Quick Connect	Chassis Mount	0.6 mm	0.024 "	On-Mom	Round (Pin Plunger)	0.8 mm	0.031 in	250 gf	50000 Cycles	2 mm	0.08 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

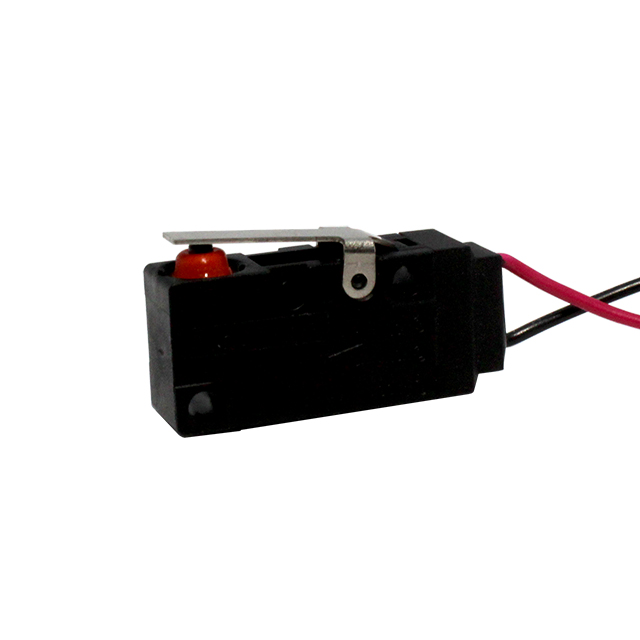

CIT Relay and Switch VM3SBGF1803L04	125 V	0.602 in	15.3 mm	190 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	0.5 mm	0.02 "	On-Mom	Lever Straight	1 mm	0.04 in	80 gf	50000 Cycles	1.8 mm	0.071 "	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

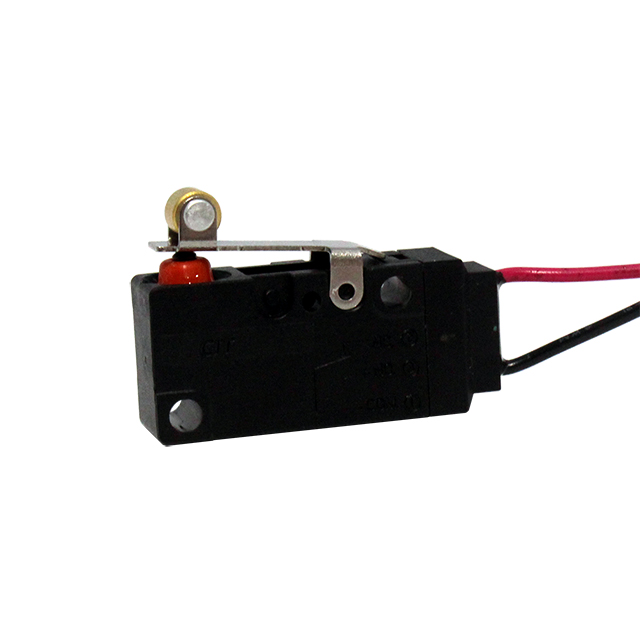

CIT Relay and Switch VM3SBQF1803L06	125 V	0.807 in	20.5 mm	240 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	0.5 mm	0.02 "	On-Mom	Lever Roller	1 mm	0.04 in		50000 Cycles	1.5 mm	0.06 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

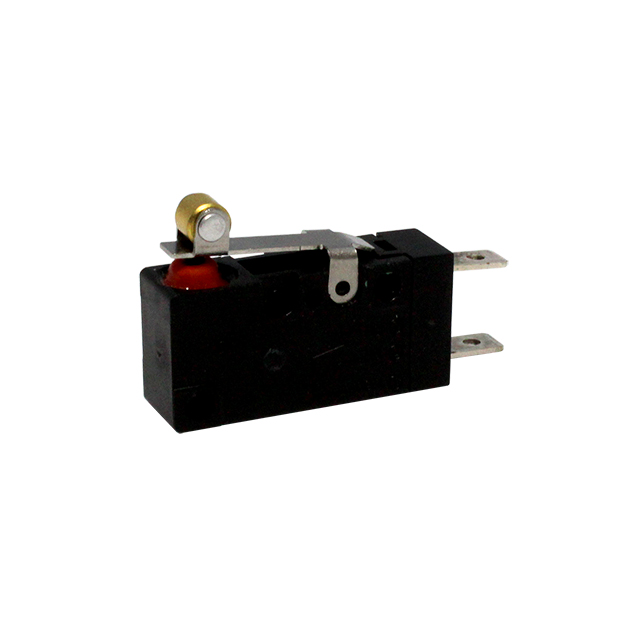

CIT Relay and Switch VM3SBQF3002L06	125 V	0.799 in	20.3 mm	380 gf	36 VDC	SPST-NC	Quick Connect	Chassis Mount	0.3 mm	0.012 "	On-Mom	Lever Roller	1 mm	0.04 in	160 gf	50000 Cycles	1.7 mm	0.067 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A

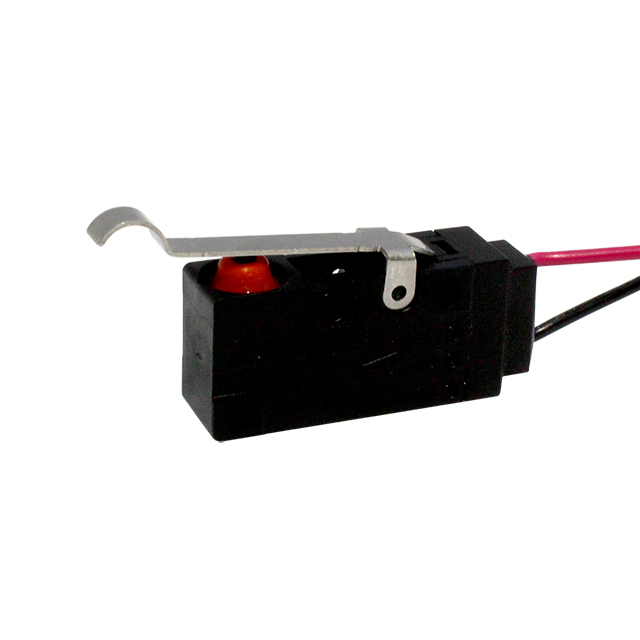

CIT Relay and Switch VM3SBGF1803L02	125 V	0.736 in	18.7 mm	120 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	1 mm	0.039 "	On-Mom	Lever Simulated Roller	0.05 in		50 gf	50000 Cycles	3 mm	0.118 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A	1.3 mm
CIT Relay and Switch VM3SBGF3003L04	125 V	0.591 in	15 mm	300 gf	36 VDC	SPST-NC	Wire Leads	Chassis Mount	0.5 mm	0.02 "	On-Mom	Lever Straight	1 mm	0.04 in	250 gf	50000 Cycles	2 mm	0.08 in	1000000 Cycles	IP67 - Dust Tight Waterproof	120 °C	-40 C	6 A 10 A
