ECP Series

Manufacturer: LEMO

Catalog

CONN NIMCAMAC RCPT STR 50 OHM

Part	Voltage Rating	Dielectric Material	Center Contact Plating	Body Material	Mating Cycles	Includes	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Shield Termination	Mounting Type	Housing Color	Connector Type	Impedance	Mounting Feature	Center Contact Material	Connector Style	Ingress Protection	Number of Ports	Fastening Type	Shell Material	Termination	Contact Finish - Mating	Insert Material	Primary Material	Contact Material	Current Rating (Amps)	Shell Size - Insert	Number of Positions	Shielding	Material Flammability Rating	Orientation	Color	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ECP.00.650.NLLY	700 VDC	Polyetheretherketone (PEEK)	Gold	Brass	5000	1 Connector 1 Nut	Nickel	-55 C	260 °C	Solder Cup	Solder	Panel Mount	Silver	Receptacle Female Socket	50 Ohms	Bulkhead - Rear Side Nut	Bronze	NIM-CAMAC CD/N 549 Triaxial	IP50 - Dust Protected	1	Push-Pull
LEMO ECP.2S.308.CLN								-55 C	250 °C			Panel Mount Through Hole		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass	Solder	Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	9 A	308	8	Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.00.113.CTL								-55 C	250 °C			Panel Mount		Receptacle Female Sockets		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass		Gold	Polyetheretherketone (PEEK)	Metal	Bronze	8 A	113	1	Shielded	UL94 V-0	P	Silver	Chrome	1.5 Ám	59 Áin

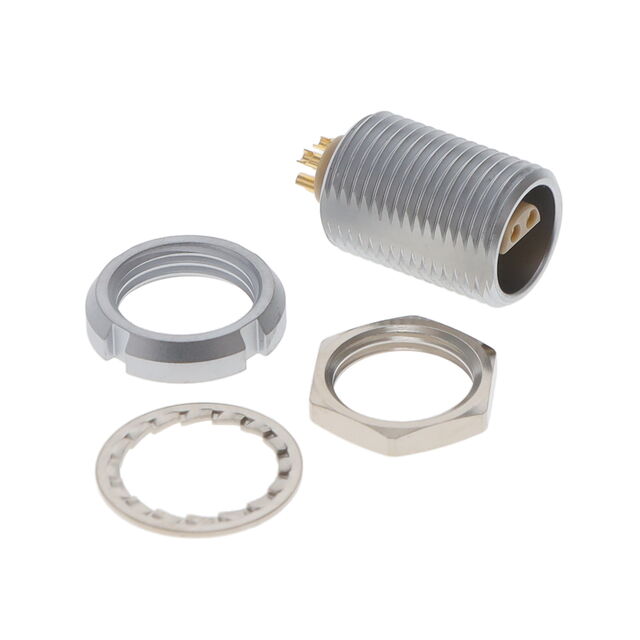

LEMO ECP.1S.304.CLL								-55 C	250 °C			Panel Mount		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass		Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	10 A	304	4	Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.2S.304.CLV								-55 C	250 °C			Panel Mount Right Angle Through Hole		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass	Solder	Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	12 Amps	304	4	Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.00.650.NLL	700 VDC	Polyetheretherketone (PEEK)	Gold	Brass	5000	1 Connector 2 Nuts	Nickel	-55 C	260 °C	Solder Cup	Solder	Panel Mount	Silver	Receptacle Female Socket	50 Ohms	Bulkhead - Rear Side Nut	Bronze	NIM-CAMAC CD/N 549 Triaxial	IP50 - Dust Protected	1	Push-Pull
LEMO ECP.0S.302.CLV								-55 C	250 °C			Panel Mount Right Angle Through Hole		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass	Solder	Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	6 A	302	2	Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.3S.310.CLN								-55 C	250 °C			Panel Mount Through Hole		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass	Solder	Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	9 A	310	10	Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.1S.303.CLL								-55 C	250 °C			Panel Mount		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass		Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	10 A	303		Shielded	UL94 V-0	Keyed	Silver	Chrome
LEMO ECP.2S.302.CLN								-55 C	250 °C			Panel Mount Through Hole		Receptacle Female Sockets and Male Pins		Front and Rear Side Nut			IP50 - Dust Protected		Push-Pull	Brass	Solder	Gold	Polyetheretherketone (PEEK)	Metal	Brass Bronze	20 A	302	2	Shielded	UL94 V-0	Keyed	Silver	Chrome
