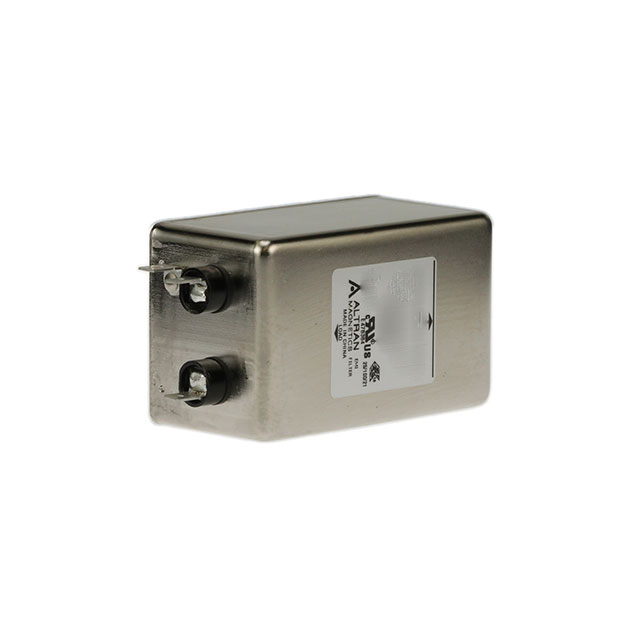

AMI-M11R Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Inductance	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Applications	Voltage - Rated AC	Current	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Configuration	Termination Style
Altran Magnetics, LLC AMI-M11R-7M-3-B-1	7.06 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	3 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7-6-B-2	7.8 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	6 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7M-10-B-1	7.13 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	10 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7M-6-B-1	7.8 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	6 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7-6-B-1	7.8 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	6 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect

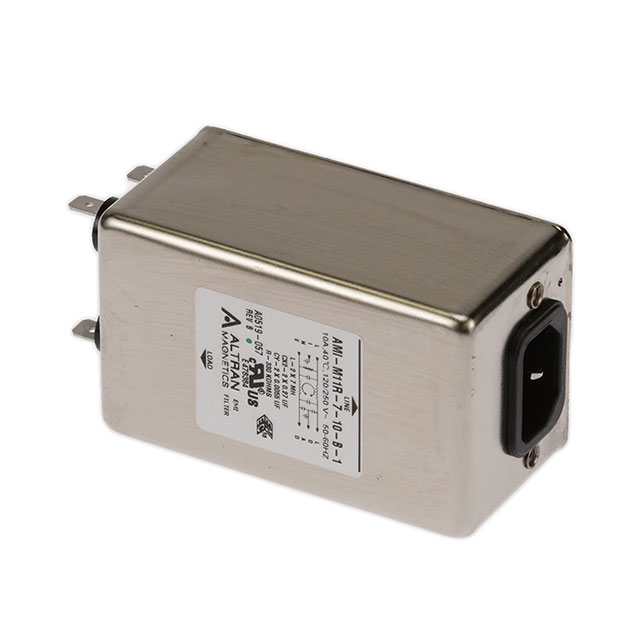

Altran Magnetics, LLC AMI-M11R-7-10-B-1	7.13 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	10 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7M-3-B-2	7.06 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	3 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7-3-B-2	7.06 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	3 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7M-10-B-2	7.13 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	10 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
Altran Magnetics, LLC AMI-M11R-7-10-B-2	7.13 mH	60 Hz	50 Hz	Single Phase	General Purpose	250 V	10 A	40 °C	-10 °C	Chassis Mount	Single Stage	IEC 320-C14 Quick Connect
