34111 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

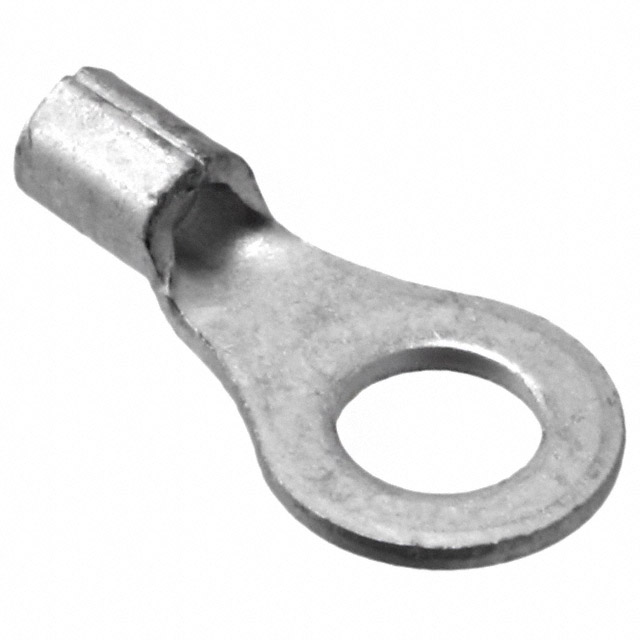

CONN RING CIRC 16-22AWG #8 CRIMP
| Part | Length - Overall [x] | Length - Overall | Terminal Type | Mounting Type | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Features | Contact Material | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.621 in | 15.77 mm | Circular | Free Hanging (In-Line) | Crimp | 7.92 mm | 0.312 in | Non-Insulated | Brazed Seam Serrated Termination | Copper | 0.031 in | 0.79 mm | 22 AWG | 16 AWG | Tin | 8 Stud |
