GLAA0 Series

Catalog

SWITCH SNAP ACTION SPDT 6A 120V

Part	Voltage Rating - AC	Pretravel	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Operating Force	Mounting Type	Circuit	Actuator Type	Operating Position	Mechanical Life	Switch Function	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Features	Overtravel	Operating Position [x]	Operating Position [x]	Pretravel	Overtravel

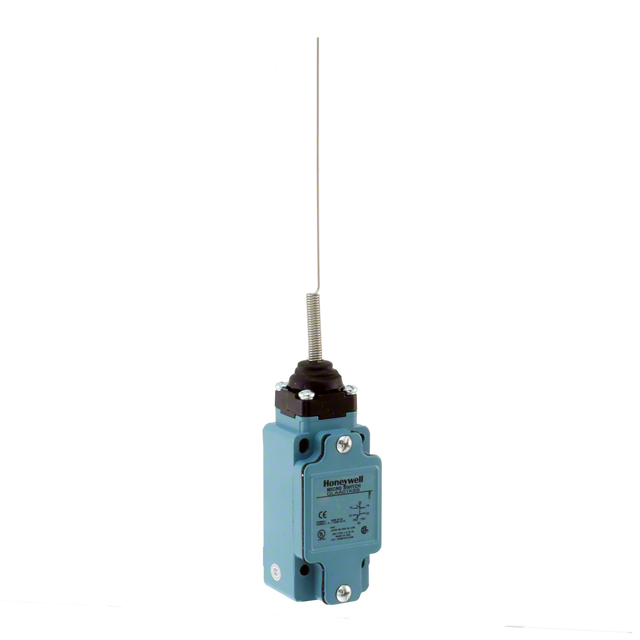

Honeywell Sensing and Productivity Solutions GLAA01K8B	120 V	18 °	125 VDC	6 A 550 mA	Screw Terminal	10 gfm	Chassis Mount	SPDT	Cat Whisker Spring	18 °	15000000 Cycles	On-Mom	IP67 - Dust Tight Waterproof	-25 °C	85 °C

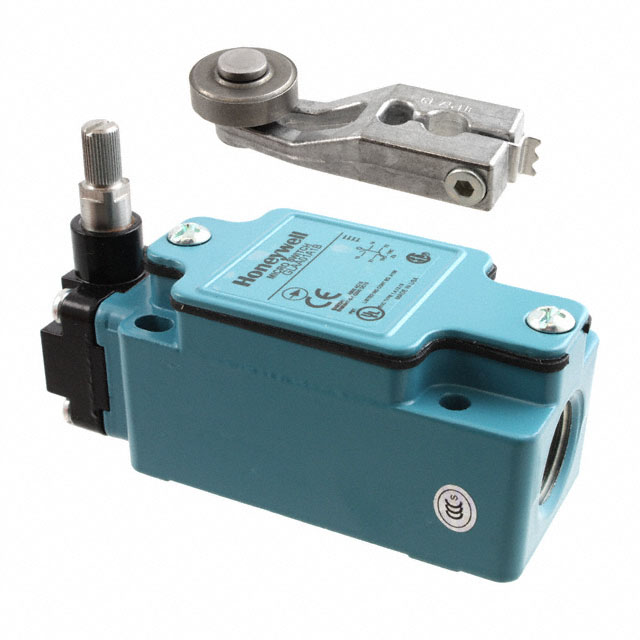

Honeywell Sensing and Productivity Solutions GLAA01A1B	120 V	26 °	125 VDC	6 A 550 mA	Screw Terminal	33 gfm	Chassis Mount	SPDT	Roller Side Rotary	26 °	15000000 Cycles	On-Mom	IP67 - Dust Tight Waterproof	-25 °C	85 °C	12 °	Steel Roller	59 °

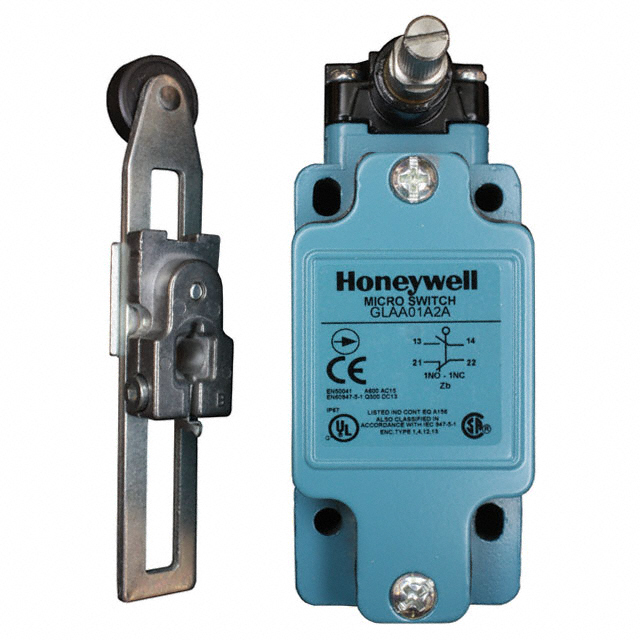

Honeywell Sensing and Productivity Solutions GLAA01A2A	120 V	26 °	125 VDC	6 A 550 mA	Screw Terminal	33 gfm	Chassis Mount	SPDT	Side Rotary Adjustable Roller	26 °	15000000 Cycles	On-Mom	IP67 - Dust Tight Waterproof	-25 °C	85 °C	12 °	Nylon Roller	59 °

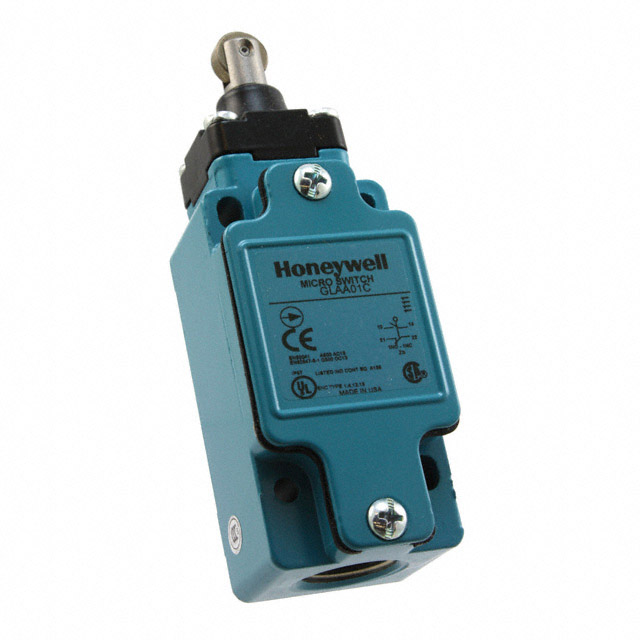

Honeywell Sensing and Productivity Solutions GLAA01C	120 V	0.1 in	125 VDC	6 A 550 mA	Screw Terminal	1632 gf	Chassis Mount	SPDT	Roller Plunger		15000000 Cycles	On-Mom	IP67 - Dust Tight Waterproof	-25 °C	85 °C			0.18 in	48 mm	1.89 in	2.5 mm	4.6 mm
