T 3275 Series

Catalog

CONN PLUG HSG FMALE 3POS INLINE

Part	Mounting Type	Shell Material	Material Flammability Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shielding	Contact Type	Contact Size	Connector Type	Type	Housing Color	Note	Insert Material	Fastening Type	Shell Size - Insert	Ingress Protection	Contact Shape	Primary Material	Color	Shell Finish	Voltage Rating	Current Rating (Amps)	Contact Finish - Mating

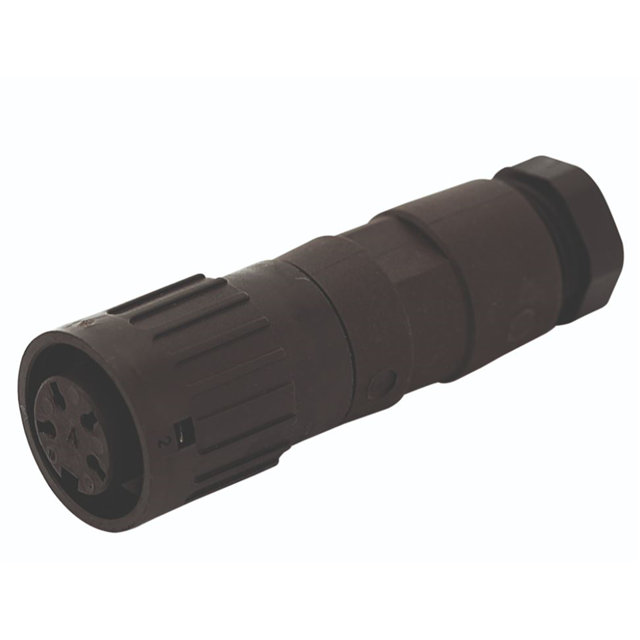

Amphenol Tuchel Industrial T 3275 552	Free Hanging (In-Line)	Plastic	UL94 V-0	Keyed	-40 C	100 °C	Backshell Cable Clamp Coupling Nut	Unshielded	Crimp	1.5 mm	Plug Housing	For Female Sockets	Black	Contacts Not Included	Thermoplastic	Bayonet Lock	M16-3	IP40	Circular
Amphenol Tuchel Industrial T 3275 005	Free Hanging (In-Line) Right Angle	Die Cast		Keyed	-40 C	100 °C	Strain Relief				Plug Female Sockets					Bayonet Lock	M16-3	IP40		Metal	Silver	Nickel	250 V	10 A	Silver

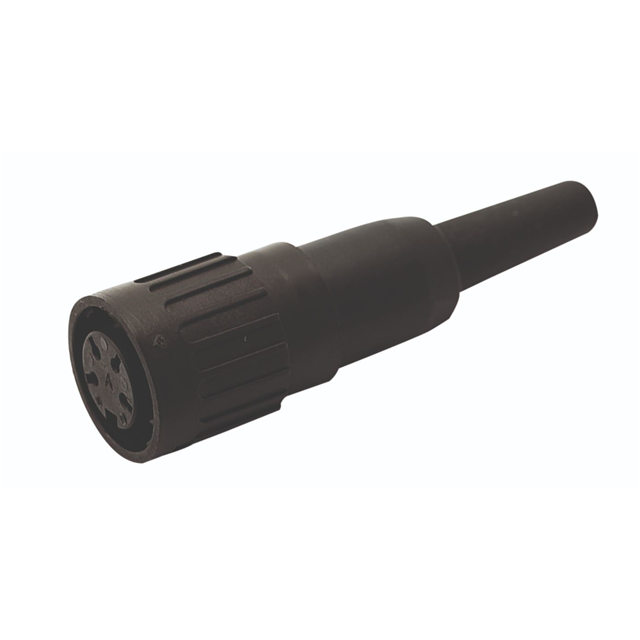

Amphenol Tuchel Industrial T 3275 551	Free Hanging (In-Line)	Plastic	UL94 V-0	Keyed	-40 C	100 °C	Cable Clamp Coupling Nut Strain Relief	Unshielded	Crimp	1.5 mm	Plug Housing	For Female Sockets	Black	Contacts Not Included	Thermoplastic	Bayonet Lock	M16-3	IP40	Circular
Amphenol Tuchel Industrial T 3275 502	Free Hanging (In-Line)	Plastic		Keyed	-40 C	100 °C	Cable Clamp Strain Relief				Plug Female Sockets					Bayonet Lock	M16-3	IP40		Plastic			250 V	10 A	Silver
