392-078 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Part	Contact Type	Termination	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features
EDAC Inc. 392-078-541-212	Cantilever	Wire Wrap	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2

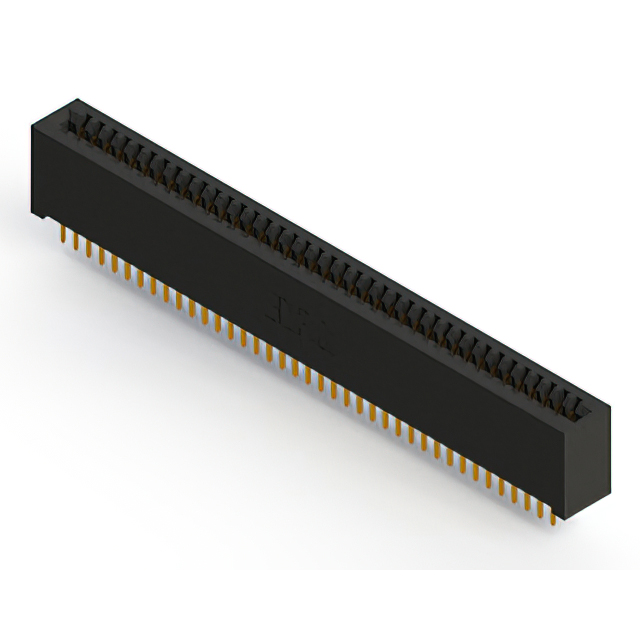

EDAC Inc. 392-078-521-201	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female				Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2

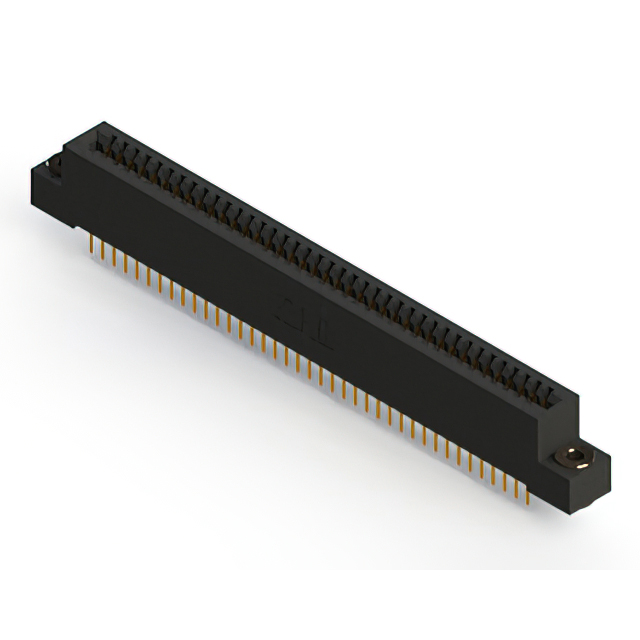

EDAC Inc. 392-078-524-203	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2
EDAC Inc. 392-078-521-208	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2
EDAC Inc. 392-078-540-204	Cantilever	Wire Wrap	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2
EDAC Inc. 392-078-541-202	Cantilever	Wire Wrap	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2

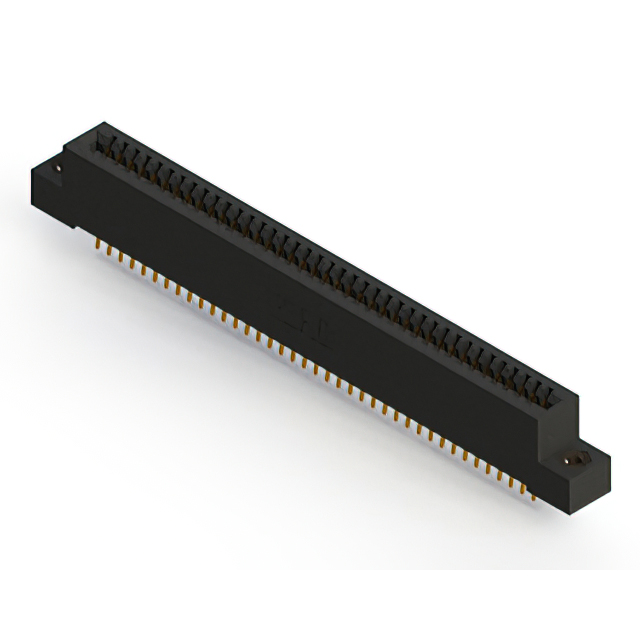

EDAC Inc. 392-078-556-208	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender
EDAC Inc. 392-078-542-212	Cantilever	Wire Wrap	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2
EDAC Inc. 392-078-523-208	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2

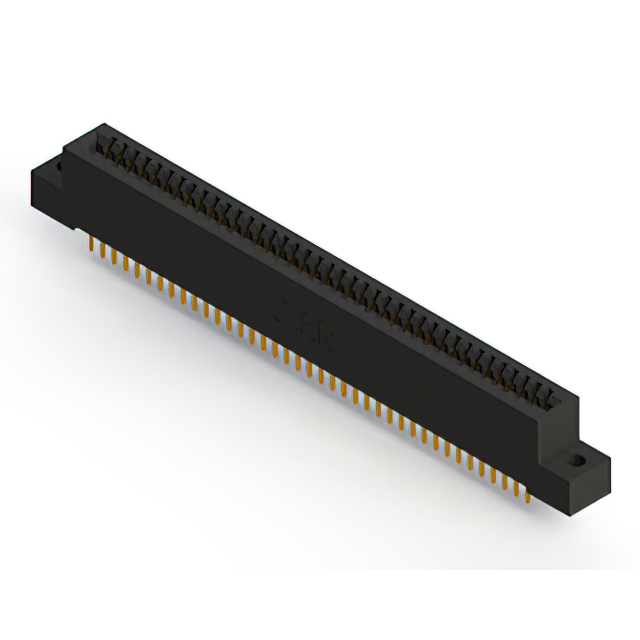

EDAC Inc. 392-078-521-202	Cantilever	Solder	Black	2.54 mm	0.1 in	39	Copper Alloy	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Female	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Dual	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	2	78	Through Hole	10 Áin	0.25 Ám	2
