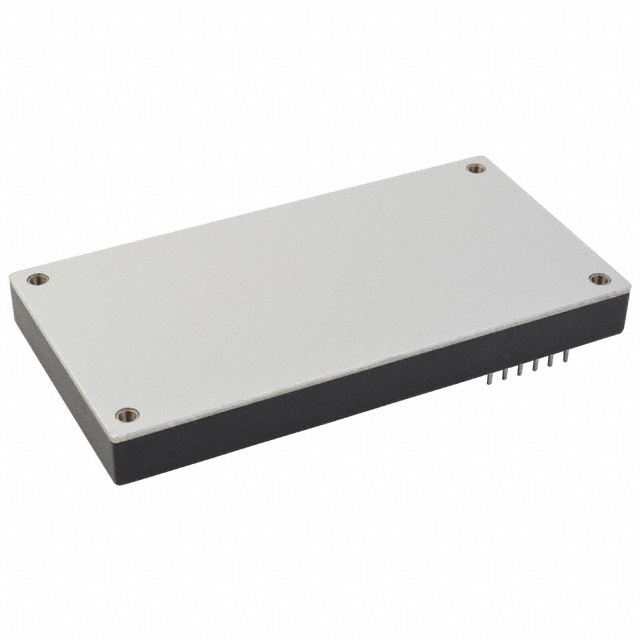

VFB400W Series

Manufacturer: CUI Inc.

Catalog

MODULE DC-DC 24VIN 1-OUT 48V 8.3A 400W 16-PIN BRICK

Part	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Standard Number	Voltage - Input (Max) [Max]	Efficiency	Control Features	Voltage - Isolation	Features	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Power (Watts)	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]
CUI Inc. VFB400W-Q24-S48N	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	36 V	86.5 %	Active Low Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	9 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	48 V	8.3 A
CUI Inc. VFB400W-Q24-S48	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	36 V	86.5 %	Active High Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	9 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	48 V	8.3 A
CUI Inc. VFB400W-Q24-S24N	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	36 V	87 %	Active Low Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	9 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	24 V	16.7 A
CUI Inc. VFB400W-Q24-S28	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	36 V	87 %	Active High Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	9 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	28 V	14.3 A
CUI Inc. VFB400W-Q48-S24	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	75 V	90 %	Active High Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	18 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	24 V	16.7 A
CUI Inc. VFB400W-Q48-S24N	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	75 V	90 %	Active Low Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	18 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	24 V	16.7 A
CUI Inc. VFB400W-Q48-S28N	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	75 V	90 %	Active Low Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	18 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	28 V	14.3 A
CUI Inc. VFB400W-Q24-S12	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	36 V	86 %	Active High Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	9 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	12 V	33.3 A
CUI Inc. VFB400W-Q48-S48	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	75 V		Active High Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	18 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	48 V	8.3 A
CUI Inc. VFB400W-Q48-S5N	1	ITE (Commercial)	-40 C	100 °C	Isolated Module	Through Hole	60950-1	75 V	89 %	Active Low Enable	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	18 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	UL	400 W	16-DIP Module Full Brick	5 V	80 A
