4112N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

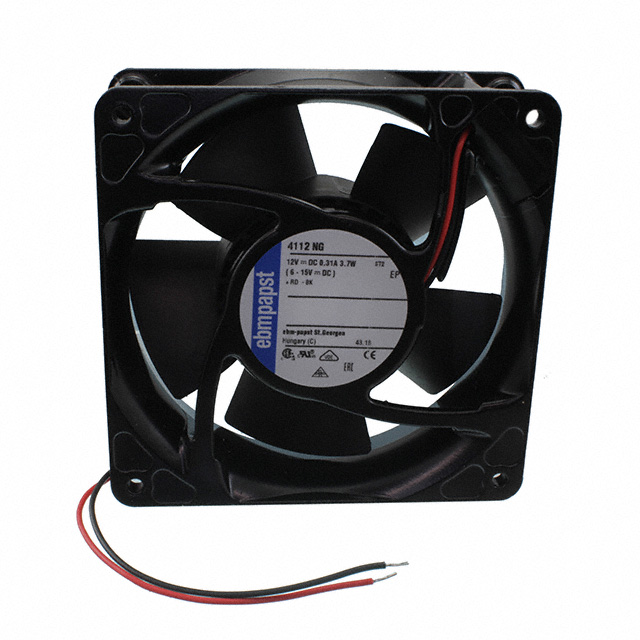

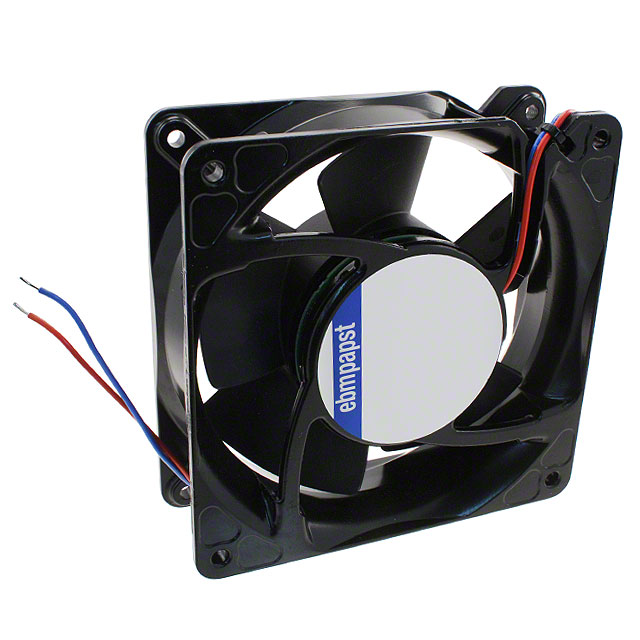

DC AXIAL FAN, 12 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 182.4 CFM
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Noise | Air Flow | Air Flow | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Bearing Type | Approval Agency | Weight | Weight | RPM | Voltage - Rated | Power (Watts) | Fan Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 65000 Hrs | 9 V | 15 V | Aluminum | (-20 ~ 65°C) | -20 ░C | 65 °C | 38 mm | 65 dB | 5.11 m³/min | 182.4 CFM | Square | 119 mm | 119 mm | Ball | CE | 0.86 lb | 390.09 g | 6000 RPM | 12 VDC | 21.6 W | Tubeaxial | 2 Wire Leads |
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 9 V | 14 V | Aluminum | 38 mm | Square | 119 mm | 119 mm | Sleeve | 12 VDC | Tubeaxial | 2 Wire Leads | ||||||||||||
ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 9 V | 15 V | Aluminum | (-20 ~ 65°C) | -20 ░C | 65 °C | 38 mm | 60 dB(A) | 4.28 m³/min | 152.9 CFM | Square | 119 mm | 119 mm | Ball | CE | 0.86 lb | 390.09 g | 5000 RPM | 12 VDC | 15.5 W | Tubeaxial | 2 Wire Leads |
