OSTTC03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

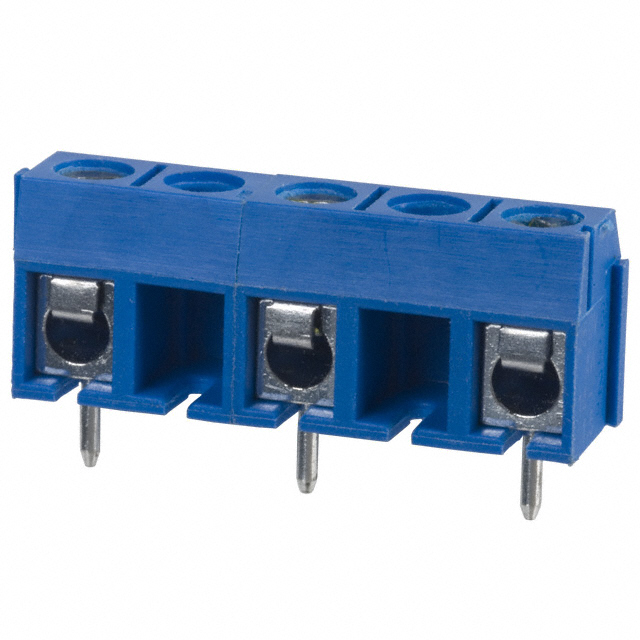

TERM BLK 3P SIDE ENT 10.16MM PCB
| Part | Screw Thread | Contact Material - Plating | Clamp Material - Plating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Screw Material - Plating | Housing Material | Wire Termination | Number of Levels | Current | Pitch | Pitch | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Voltage | Positions Per Level | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | M2.6 | Brass | Stainless Steel | -33 °C | 120 °C | 3.5 Lb-In | 0.4 Nm | Steel Galvanized - Chromate Plated | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 1 | 15 A | 10.16 mm | 0.4 in | Through Hole | 14 AWG | 22 AWG | Interlocking (Side) | 300 VDC | 3 | Horizontal with Board |
