842-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

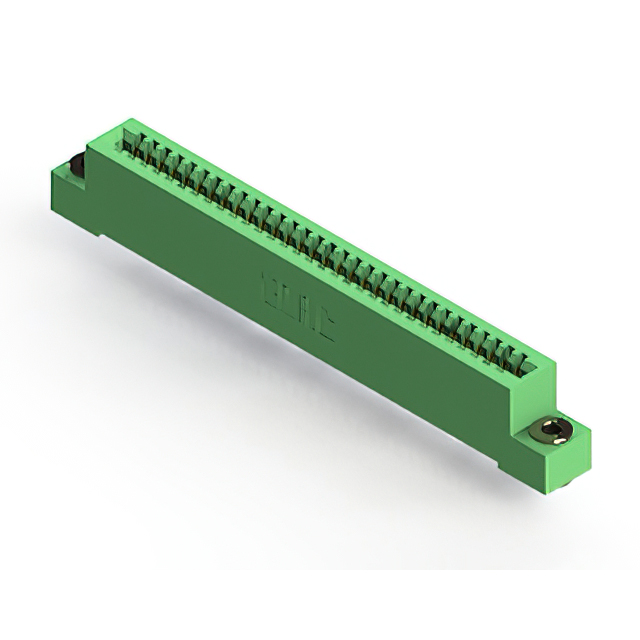

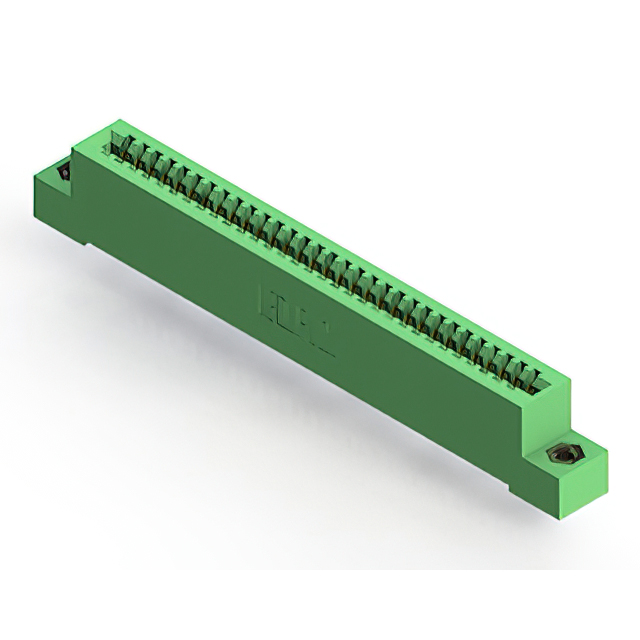

CONN EDGE SINGLE FML 31POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Number of Rows | Termination | Mounting Type | Color | Number of Positions [custom] | Read Out | Gender | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Pitch | Pitch | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Wire Wrap | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Wire Wrap | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Solder | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Solder | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Wire Wrap | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Solder | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Wire Wrap | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Wire Wrap | Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Solder | Right Angle Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 1 | Solder | Right Angle Through Hole | Green | 31 | Single | Female | Cantilever | 0.25 Ám | 10 Áin | 31 | Non Specified - Single Edge | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.1 " | 2.54 mm | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
