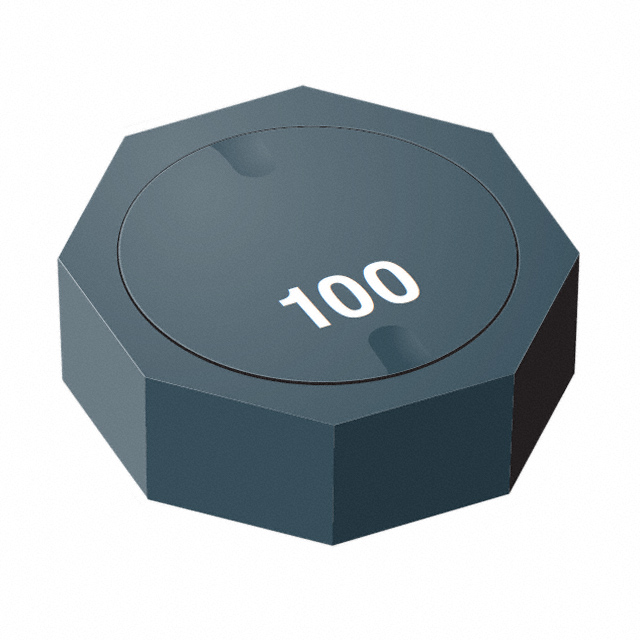

SRU1038A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU1038A SERIES, 330 H, 30%, SHIELDED, 1 OHM, 550 MA

Part	Ratings	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Mounting Type	Frequency - Self Resonant	Current Rating (Amps)	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRU1038A-331Y	AEC-Q200	Ferrite	125 °C	-40 C	30 %	Nonstandard	330 µH	4.1 mm	0.161 in	Drum Core Wirewound	Shielded	0.394 in	0.394 in	10 mm	10 mm	520 mA	Surface Mount	3 MHz	0.55 A	1 Ohm	100 kHz	20	796 kHz
Bourns Inc. SRU1038A-330Y	AEC-Q200	Ferrite	125 °C	-40 C	30 %	Nonstandard	33 µH	4.1 mm	0.161 in	Drum Core Wirewound	Shielded	0.394 in	0.394 in	10 mm	10 mm	1.8 A	Surface Mount	10 MHz	1.8 A		100 kHz			22	112 mOhm
Bourns Inc. SRU1038A-151Y	AEC-Q200	Ferrite	125 °C	-40 C	30 %	Nonstandard	150 µH	4.1 mm	0.161 in	Drum Core Wirewound	Shielded	0.394 in	0.394 in	10 mm	10 mm	800 mA	Surface Mount	5 MHz	900 mA	476 mOhm	100 kHz	20	796 kHz
Bourns Inc. SRU1038A-2R2Y	AEC-Q200	Ferrite	125 °C	-40 C	30 %	Nonstandard	2.2 µH	4.1 mm	0.161 in	Drum Core Wirewound	Shielded	0.394 in	0.394 in	10 mm	10 mm	6.5 A	Surface Mount	55 MHz	6.8 A		100 kHz			7.96 MHz 12	10.5 mOhm
Bourns Inc. SRU1038A-220Y	AEC-Q200	Ferrite	125 °C	-40 C	30 %	Nonstandard	22 µH	4.1 mm	0.161 in	Drum Core Wirewound	Shielded	0.394 in	0.394 in	10 mm	10 mm	2.3 A	Surface Mount	12 MHz	2.2 A	75 mOhm	100 kHz			2.52 MHz 20
