5359-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

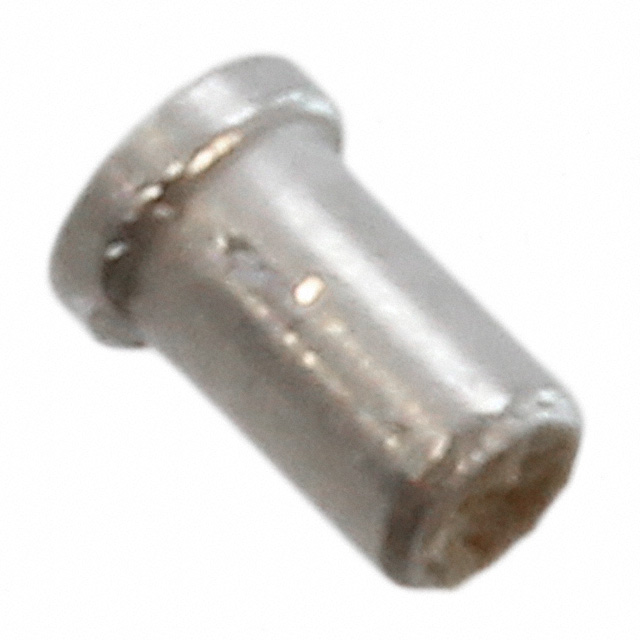

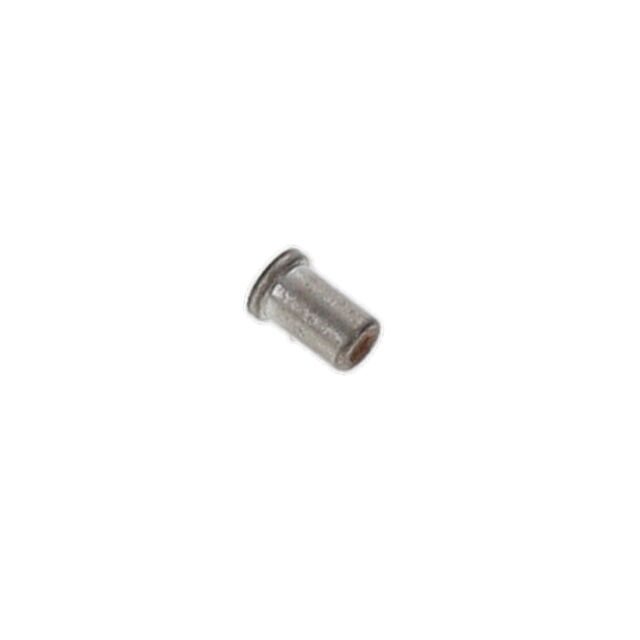

CONN PIN RCPT .012-.017 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth [z] | Socket Depth | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall | Length - Overall | Contact Material | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Knockout Bottom (Organic Fiber Plug®) | Solder | 0.048 in | 1.22 mm | 0.071 in | 1.8 mm | 0.043 in | 1.09 mm | No Tail | 0.028 in | 0.71 mm | 1.8 mm | 0.071 in | Beryllium Copper | Gold | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 30 Áin | 0.76 Ám |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Knockout Bottom (Organic Fiber Plug®) | Solder | 0.048 in | 1.22 mm | 0.071 in | 1.8 mm | 0.043 in | 1.09 mm | No Tail | 0.028 in | 0.71 mm | 1.8 mm | 0.071 in | Beryllium Copper | Gold | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 30 Áin | 0.76 Ám |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 0.048 in | 1.22 mm | 0.071 in | 1.8 mm | 0.043 in | 1.09 mm | No Tail | 1.8 mm | 0.071 in | Beryllium Copper | Gold | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 30 Áin | 0.76 Ám |
