V7-1V1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 21A 125V

Part	Differential Travel [x]	Differential Travel [x]	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Termination Style	Actuator Type	Circuit	Current Rating (Amps)	Pretravel	Pretravel	Operating Position	Operating Position	Voltage Rating - AC	Mechanical Life	Operating Force	Electrical Life	Release Force	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions V7-1V19E9-000-3	0.01 in	0.25 mm	1.27 mm	0.05 "	85 °C	-40 C	On-Mom	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	SPDT	21 A	1.2 mm	0.047 in	14.7 mm	0.579 in	125 V	10000000 Cycles	175 gf
Honeywell Sensing and Productivity Solutions V7-1V10E9-000-2

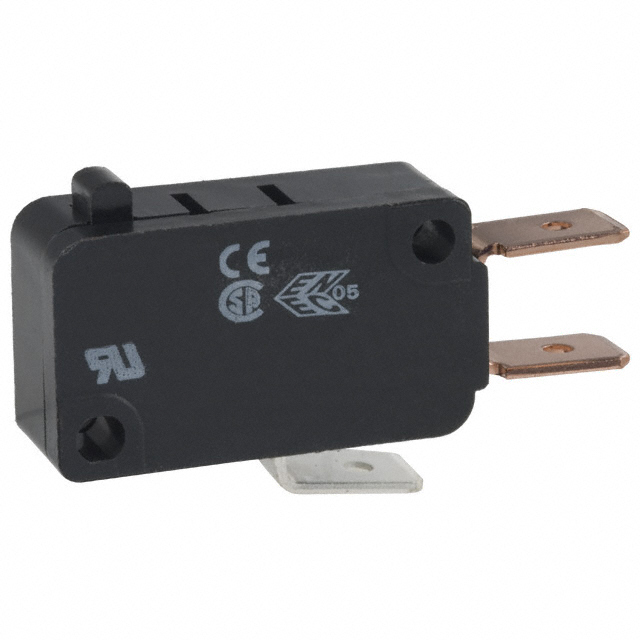

Honeywell Sensing and Productivity Solutions V7-1V19E9	0.01 in	0.25 mm	1.27 mm	0.05 "	85 °C	-40 C	On-Mom	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	SPDT	21 A	1.2 mm	0.047 in	14.7 mm	0.579 in	125 V	10000000 Cycles	175 gf	100000 Cycles	20 gf

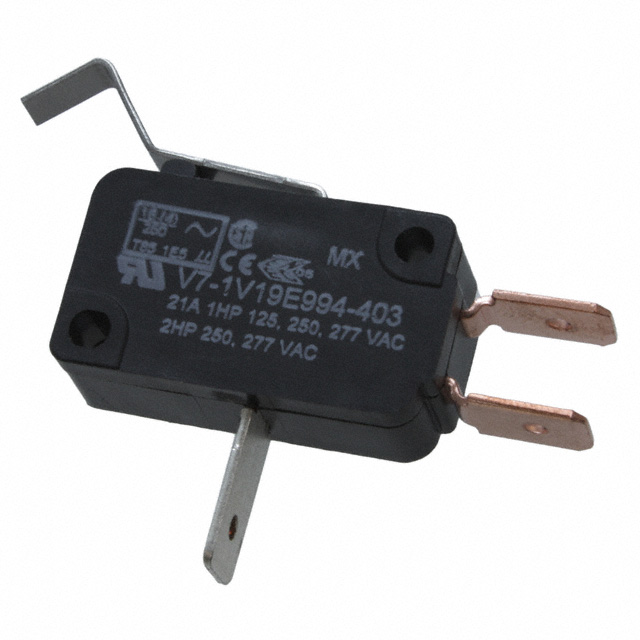

Honeywell Sensing and Productivity Solutions V7-1V19E994-403			1.45 mm	0.057 "	85 °C	-40 C	On-Mom	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Lever Formed	SPDT	21 A	2.5 mm	0.1 in			125 V	10000000 Cycles	118 gf	100000 Cycles	8 gf	0.022 "	0.56 mm
Honeywell Sensing and Productivity Solutions V7-1V10E9-002-1

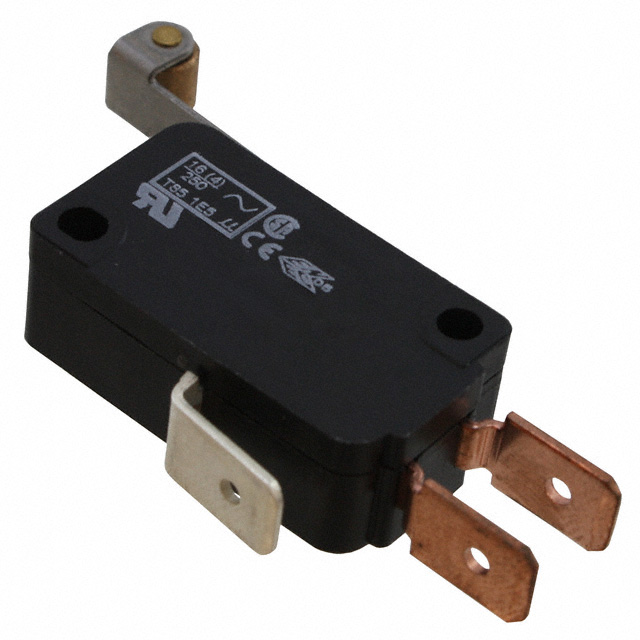

Honeywell Sensing and Productivity Solutions V7-1V19E9-207			1.7 mm	0.065 "	85 °C	-40 C	On-Mom	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Lever Roller	SPDT	21 A	3 mm	0.12 in	20.5 mm	0.806 in	125 V	10000000 Cycles	100 gf	100000 Cycles	7 gf	0.03 in	0.76 mm

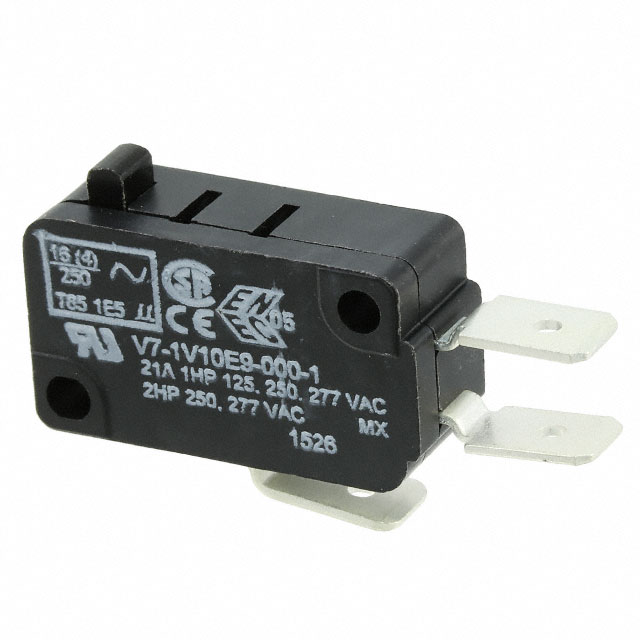

Honeywell Sensing and Productivity Solutions V7-1V10E9-000-1	0.01 in	0.25 mm	1.27 mm	0.05 "	85 °C	-40 C	On-Mom	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	SPDT	21 A	1.2 mm	0.047 in	14.68 mm	0.578 in	125 V	10000000 Cycles	160 gf	100000 Cycles	20 gf
