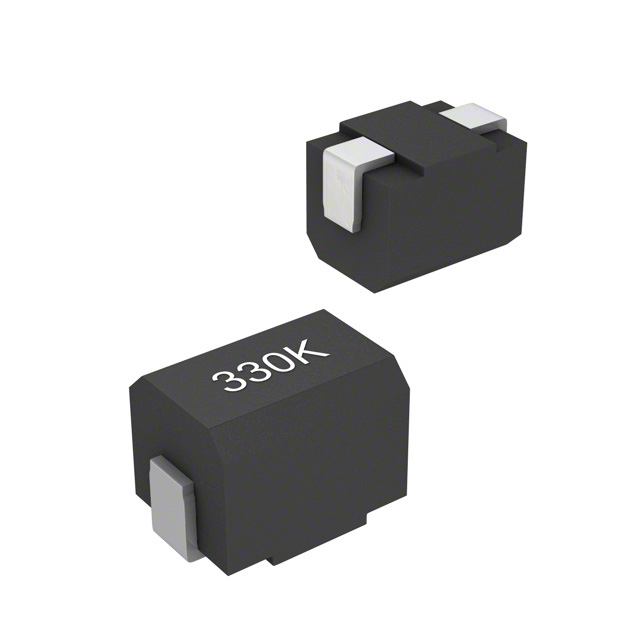

CM453232 Series

Catalog

FIXED IND 1.8UH 390MA 650MOHM SM

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Shielding	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Self Resonant	Package / Case	Type	Tolerance	Q @ Freq	Mounting Type	Material - Core	Current Rating (Amps)	Inductance	DC Resistance (DCR)
Bourns Inc. CM453232-1R8JL	0.134 in	3.4 mm	Unshielded	7.96 MHz	650 mOhm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	60 MHz	1812 (4532 Metric)	Drum Core Wirewound	5 %	7.96 MHz 50	Surface Mount	Ferrite	390 mA	1.8 µH
Bourns Inc. CM453232-270KL	0.134 in	3.4 mm	Unshielded	2.52 MHz	3.6 Ohm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	12 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %		Surface Mount	Ferrite	0.17 A	27 µH
Bourns Inc. CM453232-100JL	0.134 in	3.4 mm	Unshielded	2.52 MHz	1.6 Ohm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	20 MHz	1812 (4532 Metric)	Drum Core Wirewound	5 %		Surface Mount	Ferrite	0.25 A	10 µH
Bourns Inc. CM453232-R12KL	0.134 in	3.4 mm	Unshielded	25.2 MHz		125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	280 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %	25.2 MHz 35	Surface Mount	Ferrite	770 mA	120 nH	200 mOhm
Bourns Inc. CM453232-R18ML	0.134 in	3.4 mm	Unshielded	25.2 MHz	240 mOhm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	220 MHz	1812 (4532 Metric)	Drum Core Wirewound	20 %	25.2 MHz 35	Surface Mount	Ferrite	700 mA	180 nH
Bourns Inc. CM453232-8R2KL	0.134 in	3.4 mm	Unshielded	7.96 MHz	1.4 Ohm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	25 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %	7.96 MHz 50	Surface Mount	Ferrite	270 mA	8.2 µH
Bourns Inc. CM453232-R15ML	0.134 in	3.4 mm	Unshielded	25.2 MHz	220 mOhm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	250 MHz	1812 (4532 Metric)	Drum Core Wirewound	20 %	25.2 MHz 35	Surface Mount	Ferrite	0.73 A	150 nH
Bourns Inc. CM453232-R33KL	0.134 in	3.4 mm	Unshielded	25.2 MHz	280 mOhm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	165 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %	25.2 MHz 40	Surface Mount	Ferrite	605 mA	330 nH
Bourns Inc. CM453232-680KL	0.134 in	3.4 mm	Unshielded	2.52 MHz	6 Ohm	125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	9 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %		Surface Mount	Ferrite	130 mA	68 µH
Bourns Inc. CM453232-1R2KL	0.134 in	3.4 mm	Unshielded	7.96 MHz		125 °C	-40 C	0.177 in	4.5 mm	3.2 mm	0.126 in	80 MHz	1812 (4532 Metric)	Drum Core Wirewound	10 %	7.96 MHz 50	Surface Mount	Ferrite	430 mA	1.2 µH	550 mOhm
