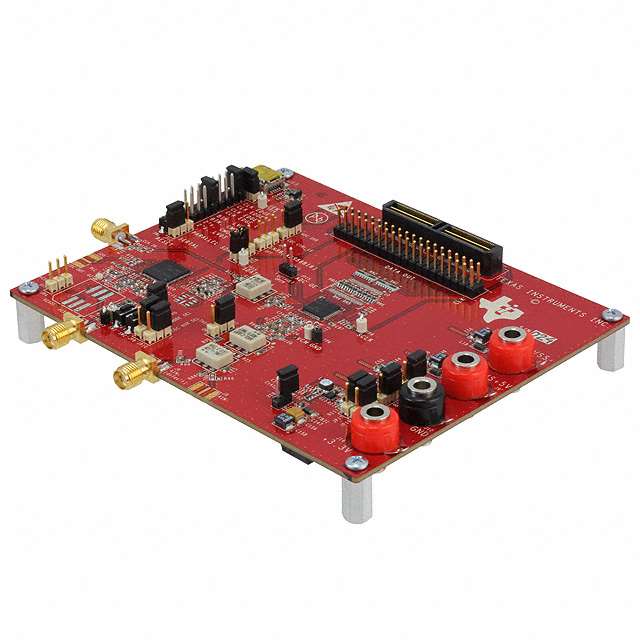

12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)
Key Features
• Ultra-Low Power With 1.8-V Single Supply:103-mW Total Power at 65 MSPS153-mW Total Power at 125 MSPSHigh Dynamic Performance:SNR: 72.2 dBFS at 170 MHzSFDR: 81 dBc at 170 MHzDynamic Power Scaling With Sample RateIdle Channel SNR 74.8 dBFS (ADS414x)Output Interface:Double Data Rate (DDR) LVDS With Programmable Swing and Strength:Standard Swing: 350 mVLow Swing: 200 mVDefault Strength: 100-Ω Termination2x Strength: 50-Ω Termination1.8-V Parallel CMOS Interface Also SupportedProgrammable Gain up to 6 dB for SNR, SFDR Trade-OffDC Offset CorrectionSupports Low Input Clock Amplitude Down to 200 mVPPUltra-Low Power With 1.8-V Single Supply:103-mW Total Power at 65 MSPS153-mW Total Power at 125 MSPSHigh Dynamic Performance:SNR: 72.2 dBFS at 170 MHzSFDR: 81 dBc at 170 MHzDynamic Power Scaling With Sample RateIdle Channel SNR 74.8 dBFS (ADS414x)Output Interface:Double Data Rate (DDR) LVDS With Programmable Swing and Strength:Standard Swing: 350 mVLow Swing: 200 mVDefault Strength: 100-Ω Termination2x Strength: 50-Ω Termination1.8-V Parallel CMOS Interface Also SupportedProgrammable Gain up to 6 dB for SNR, SFDR Trade-OffDC Offset CorrectionSupports Low Input Clock Amplitude Down to 200 mVPP
Description
AI
The ADS412x and ADS414x devices are lower-sampling speed variants in the ADS41xx family of analog-to-digital converters (ADCs). These devices use innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8-V supply. The devices are well-suited for multi-carrier, wide bandwidth communications applications.
The ADS412x and ADS414x devices have fine gain options that can be used to improve SFDR performance at lower full-scale input ranges, especially at high input frequencies. They include a dc offset correction loop that can be used to cancel the ADC offset. At lower sampling rates, the ADC automatically operates at scaled down power with no loss in performance.
The ADS412x and ADS414x devices are available in a compact VQFN-48 package and are specified over the industrial temperature range (–40°C to +85°C).
The ADS412x and ADS414x devices are lower-sampling speed variants in the ADS41xx family of analog-to-digital converters (ADCs). These devices use innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8-V supply. The devices are well-suited for multi-carrier, wide bandwidth communications applications.
The ADS412x and ADS414x devices have fine gain options that can be used to improve SFDR performance at lower full-scale input ranges, especially at high input frequencies. They include a dc offset correction loop that can be used to cancel the ADC offset. At lower sampling rates, the ADC automatically operates at scaled down power with no loss in performance.
The ADS412x and ADS414x devices are available in a compact VQFN-48 package and are specified over the industrial temperature range (–40°C to +85°C).
