GTS447D Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH TOGGLE SPDT 16A 277V
| Part | Electrical Life | Voltage Rating - AC | Mounting Type | Bushing Thread | Circuit | Actuator Type | Ingress Protection | Panel Cutout Dimensions [diameter] | Illumination | Termination Style | Current Rating (Amps) | Switch Function | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

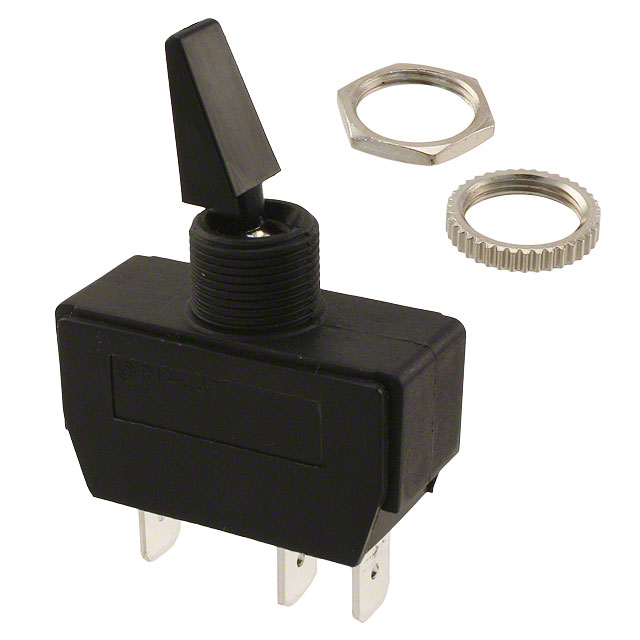

 CW Industries | 10000 Cycles | 250 V 277 V | Panel Mount | 15/32-32 | SPDT | Flatted | IP56 - Dust Protected Water Resistant | 12.2 mm Dia | Non-Illuminated | Quick Connect - 0.250" (6.3mm) | 16 A | On-Off-On | 17 mm | 0 °C | 85 °C |

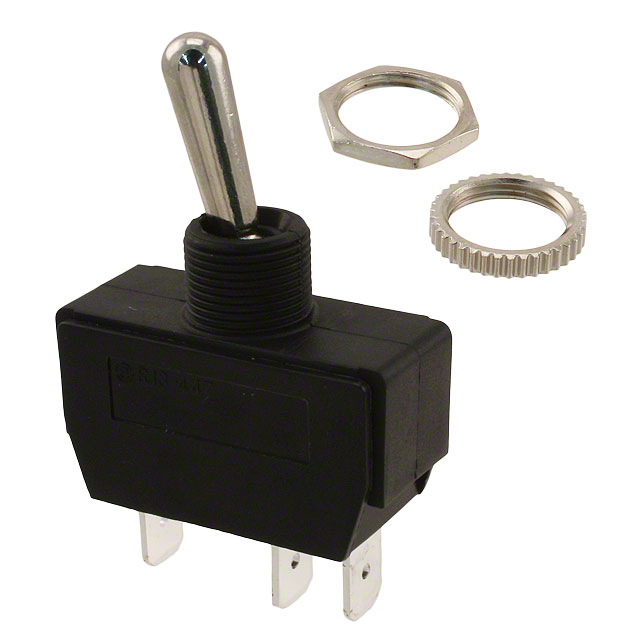

 CW Industries | 10000 Cycles | 250 V 277 V | Panel Mount | 15/32-32 | SPDT | Standard Round | IP56 - Dust Protected Water Resistant | 12.2 mm Dia | Non-Illuminated | Quick Connect - 0.250" (6.3mm) | 16 A | On-Off-On | 17.5 mm | 0 °C | 85 °C |
