0910-8 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

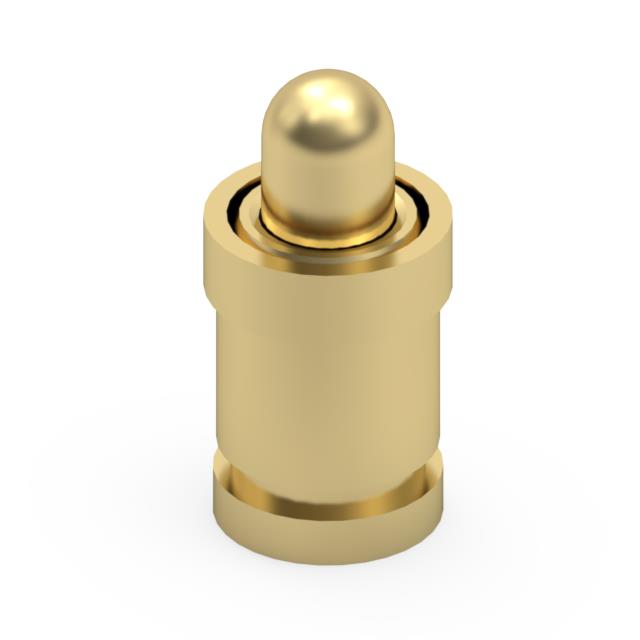

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Initial | Contact Material | Operating Force - Mid Compression | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Contact Type | Mounting Type | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | 0.155 in | 3.94 mm | 15 gf | Brass Alloy | 60 gf | 20 µin | 0.51 µm | 5.2 A | Gold | 0.042 in | 1.07 mm | 0.116 in | 2.94 mm | 0.072 in | 1.83 mm | Sleeve & Plunger (Pogo Pins) | Surface Mount | 3.44 mm | 0.135 in |
