1545A Series
Manufacturer: Belden Inc.
Beta
⌘K

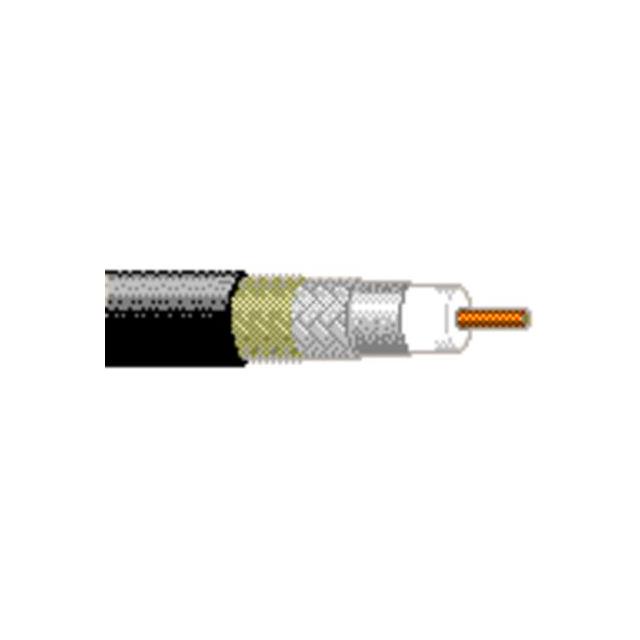

COAX 75 OHM RG6 18AWG
| Part | Dielectric Material | VoP, Velocity of Propagation | Shield Coverage [custom] | Shield Material | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Impedance | Wire Gauge | Length [x] | Length [x] | Cable Type | Shield Type | Jacket Color | Jacket (Insulation) Material | Conductor Strand | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Polyethylene (FPE) | 83 | 60 % 100 % | Aluminum | Copper Coated Steel | 0.18 in | 4.57 mm | 80 °C | -40 C | 75 Ohms | 18 AWG | 304.8 m | 1000 ft | Coaxial | Braid Foil | Black | Poly-Vinyl Chloride (PVC) | Solid | RG-6 | 0.27 " | 6.86 mm |
