ZX40E Series

Catalog

MICROSWITCH, MEDICAL, SUBMINIATURE, SIMULATED ROLLER LEVER, SPDT, SOLDER, 3 A, 48 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Current Rating (Amps)	Operating Position	Operating Position	Actuator Type	Release Force	Switch Function	Mechanical Life	Voltage Rating - AC	Pretravel	Pretravel	Termination Style	Operating Force	Circuit	Mounting Type	Electrical Life	Differential Travel

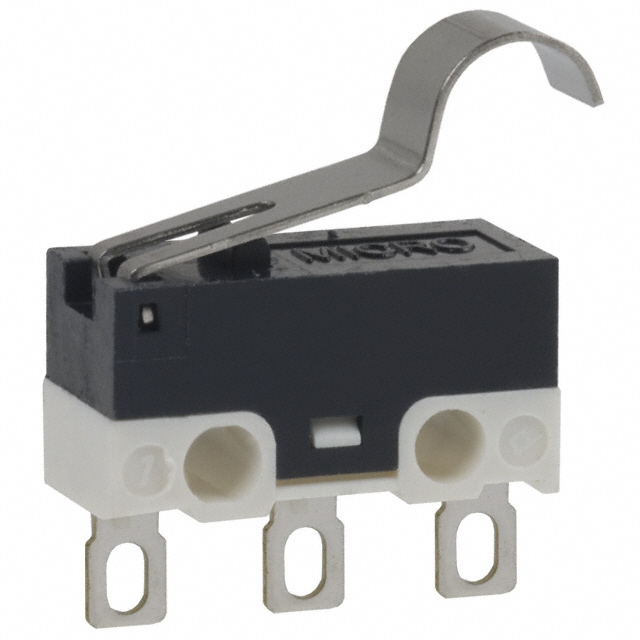

Honeywell Sensing and Productivity Solutions ZX40E10E01	85 °C	-40 C	0.025 in	0.6 mm	0.05 in	1.3 mm	3 A	11.1 mm	0.437 "	Lever Simulated Roller	8 gf	On-Mom	1000000 Cycles	125 V	0.15 in	3.8 mm	Solder Lug	55 gf	SPDT	Chassis Mount	10000 Cycles

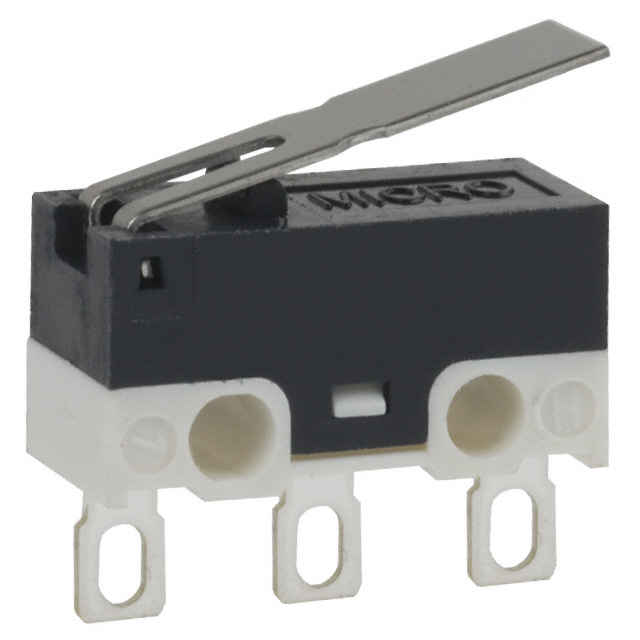

Honeywell Sensing and Productivity Solutions ZX40E10C01	120 °C	-40 C	0.025 in	0.6 mm	0.05 in	1.3 mm	3 A	8.4 mm	0.33 in	Lever Straight	8 gf	On-Mom	1000000 Cycles	125 V	0.134 "	3.4 mm	Solder Lug	48 gf	SPDT	Chassis Mount	10000 Cycles

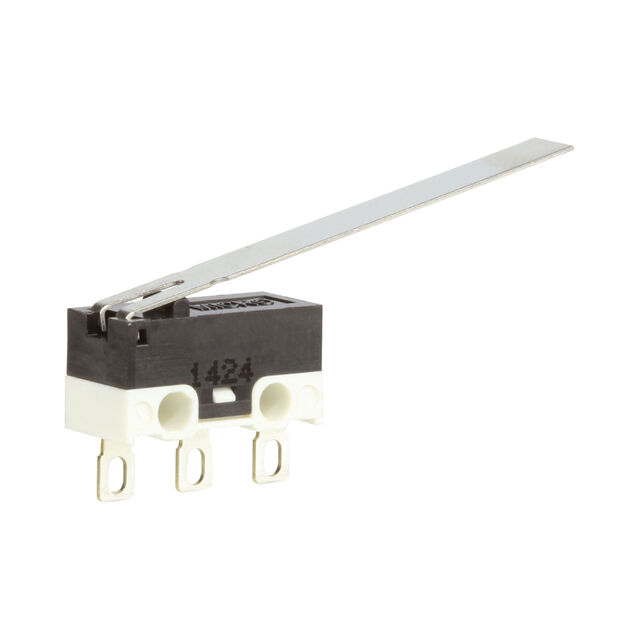

Honeywell Sensing and Productivity Solutions ZX40E10J01	120 °C	-40 C	0.035 "	0.9 mm	0.118 "	3 mm	3 A	8.9 mm	0.35 in	Lever Straight		On-Mom	1000000 Cycles	125 V	0.4 in	10.1 mm	Solder Lug		SPDT	Chassis Mount	10000 Cycles

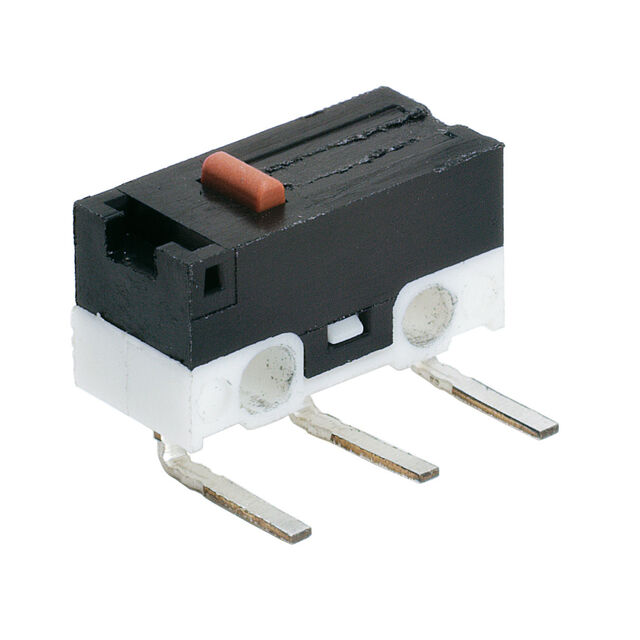

Honeywell Sensing and Productivity Solutions ZX40E60A01	120 °C	-40 C	0.008 in	0.2 mm	0.3 mm		3 A	7 mm	0.276 in	Round (Pin Plunger)	20 gf	On-Mom	1000000 Cycles	125 V	0.051 in	1.3 mm	PC Pin	150 gf	SPDT	Right Angle Through Hole	10000 Cycles	0.012 in

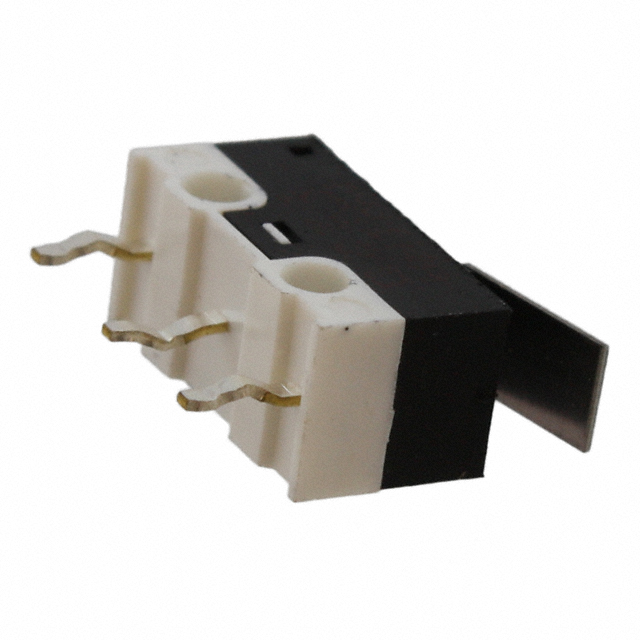

Honeywell Sensing and Productivity Solutions ZX40E30C01	120 °C	-40 C	0.025 in	0.6 mm	0.05 in	1.3 mm	3 A	8.4 mm	0.33 in	Lever Straight	8 gf	On-Mom	1000000 Cycles	125 V	0.134 "	3.4 mm	PC Pin	48 gf	SPDT	Through Hole	10000 Cycles
