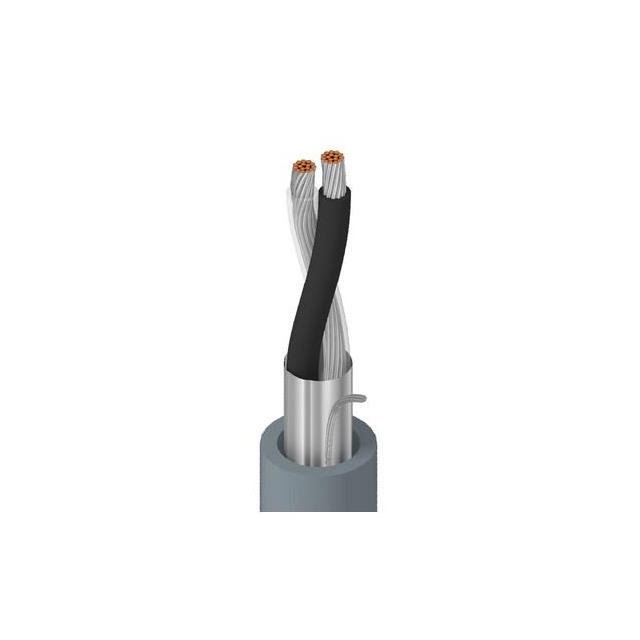

1883A Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #24 PP FS FRPVC
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket Color | Length | Length | Usage | Cable Type | Voltage | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Features | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Brown | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Black | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
 Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Gray | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | 2000 ft | 609.6 m | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Gray | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Gray | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
 Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Violet | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Red | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Black | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | White | 304.8 m | 1000 ft | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | ||
Belden Inc. | 100 % | Aluminum Polyester | 0.02 " | 0.508 mm | Foil | 24 AWG | 7 | 32 AWG | Polypropylene (PP) | Green | Audio | Multi-Conductor | 300 VDC | UL Style CMR | -20 ░C | 60 °C | 0.129 " | 3.28 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Drain Wire | 2 | 2000 ft | 609.6 m |
